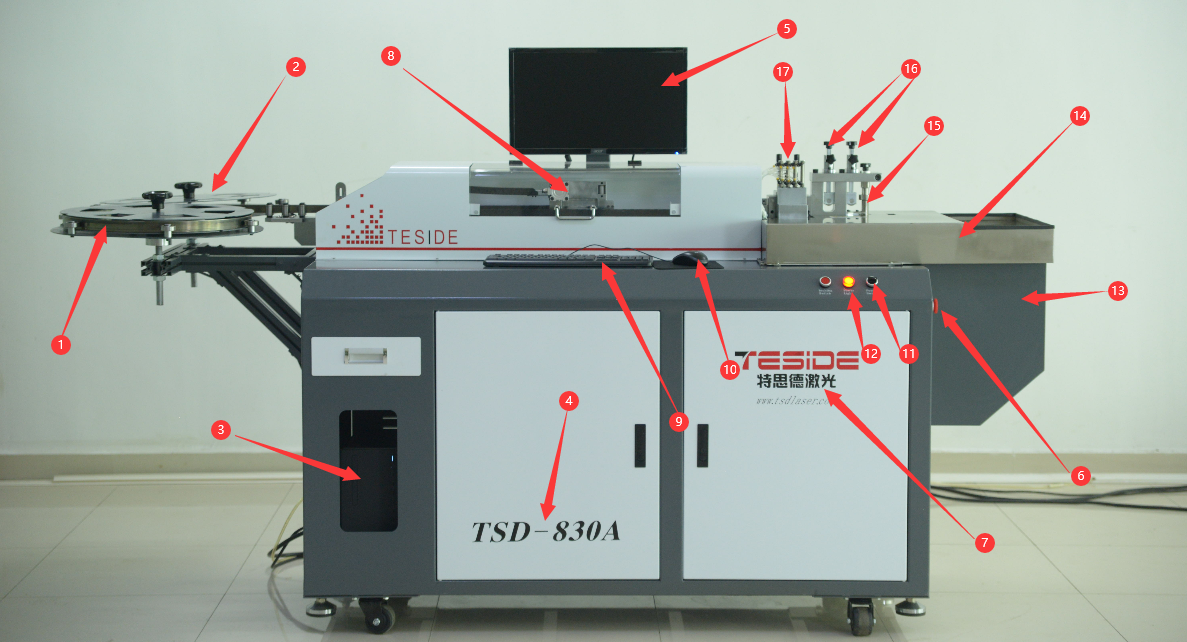

1.CW roll blade holder 2.CCW roll blade holder 3.computer 4.machine model 5.screen 6.EMS button 7.company logo 8.blade clamp 9.keyboard 10.mouse 11.power switch 12.indicator 13.cylinder cover 14.cutting mould cover 15.bending mould 16.wheel for pressing the blade 17.bridge mould

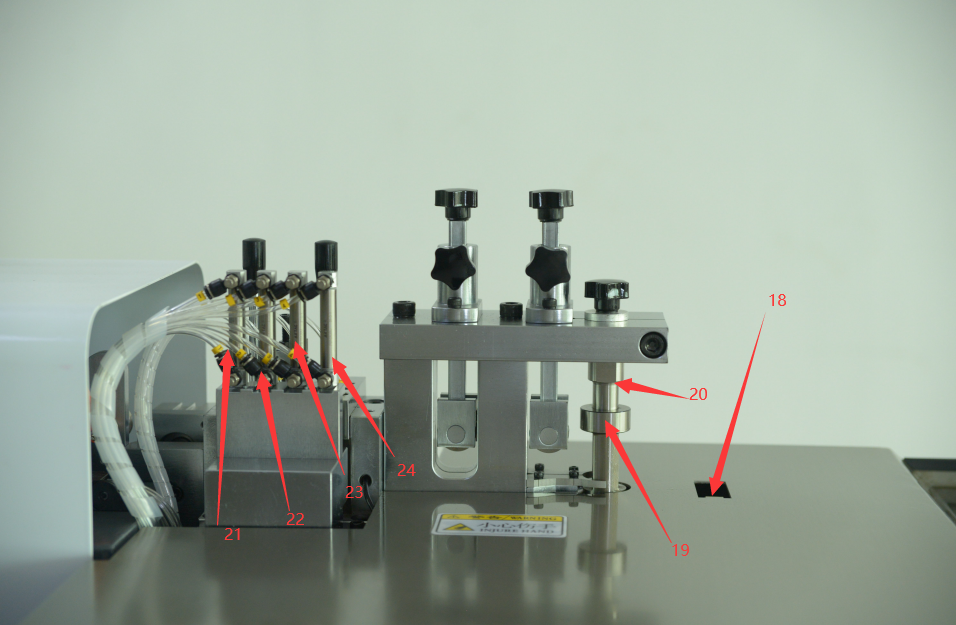

18.cutter mould 19.bend outer mould 20.bend inner mould 21.15mm bridge mould cylinder (perforation mould) 22.18mm bridge mould cylinder 23.flat cutting mould cylinder 24. lip cutting mould cylinder

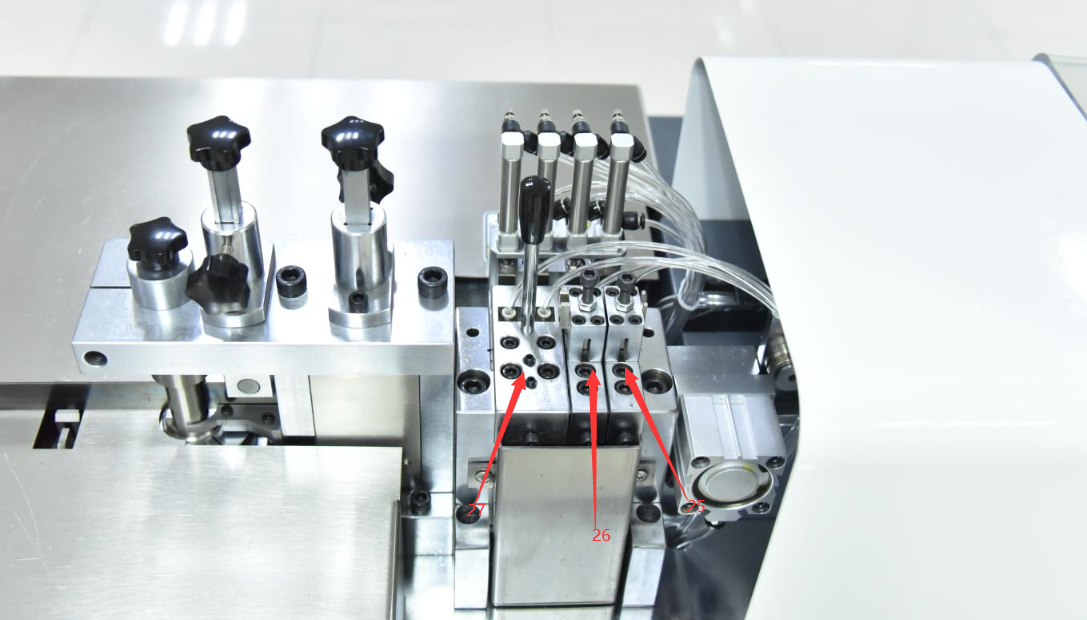

25.15mm bridge mould (perforation mould) 26.18mm bridge mould 27.flat cutting and lip cutting mould

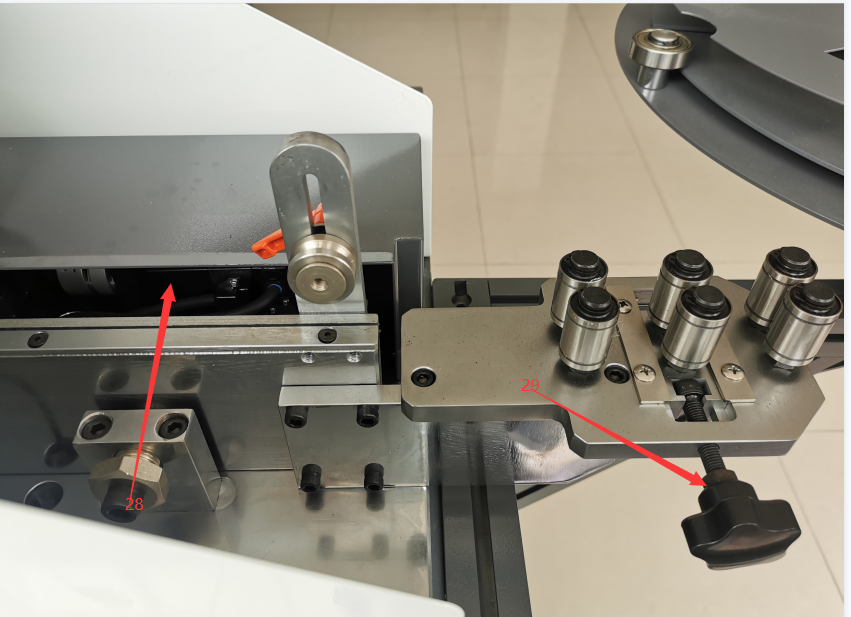

28.feed motor 29. blade adjust straight handle

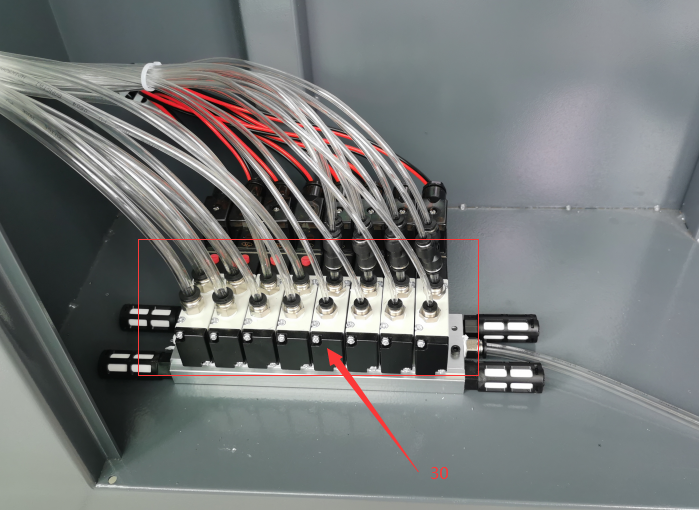

30. Solenoid valves which control the cylinders

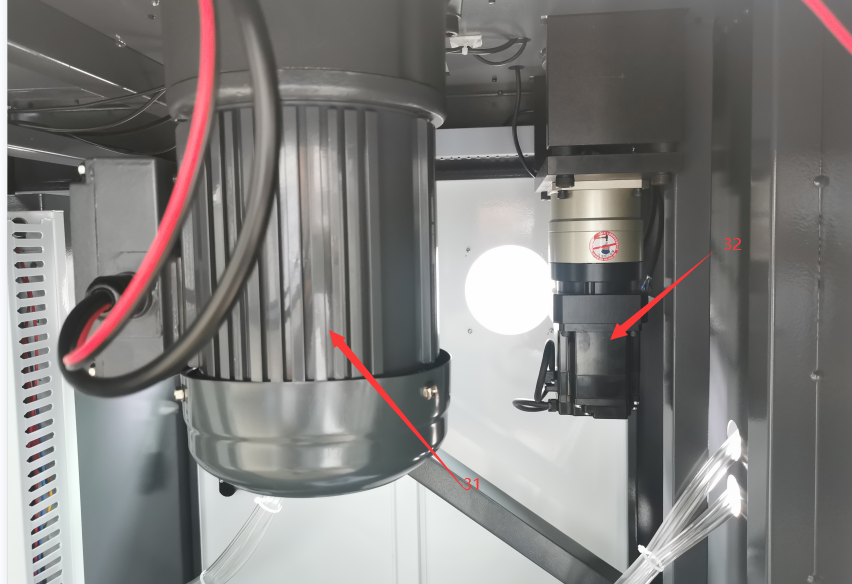

30. bridge motor 32.bend motor

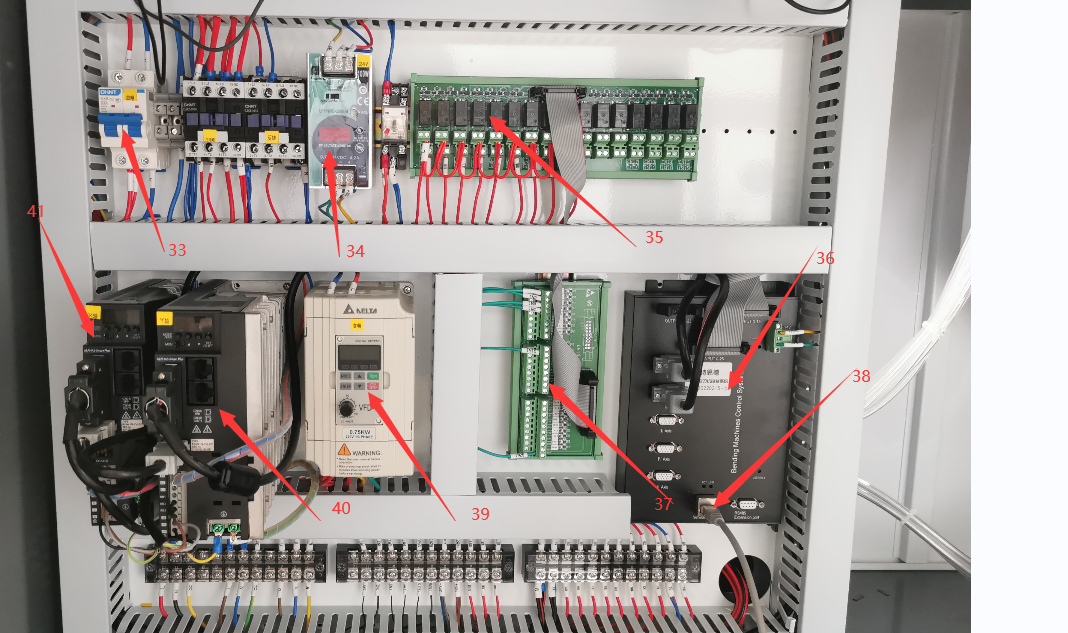

33.main switch 34.24V power supply 35.relays which control the solenoid valves 36.TSD bend motion control card 37.sensors input 38. LAN which connect the computer and the motion card 39.frequency converter for the bridge motor (some machine does not have this ) 40. bend motor servo controller 41.feed motor servo controller
