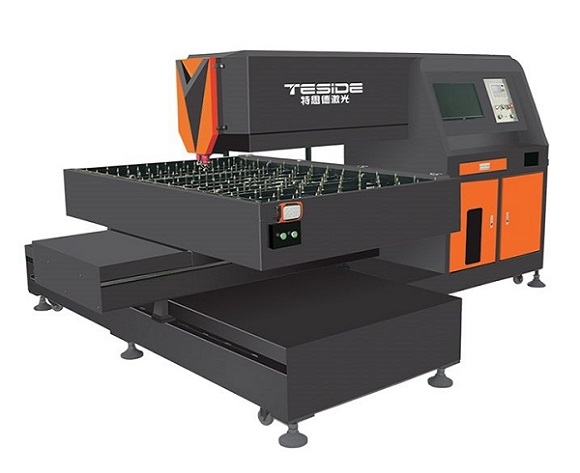

CO2 Die Board Laser Cutting Machine for Non-Metal Material Cutting
Technical Specifications:
Machine model No. | TSD-LC600-1618 |
Laser Type | TSD Laser CO2 direct-current stimulated glass laser |
Cutting area | width 1600mm x length 1800mm |
Machine weight | 2000kgs |
Driving motor | Servo motor |
Cutting depth | 15mm-18mm-20mm plywood |
Cutting precision | ±0.05mm |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould knife thickness | 0.45mm, 0.71mm,1.07mm…etc. controllable |
Cutting speed 400W | 25-30meters/hour 18-20mm plywood |
Protective gas | Dry and oil-free air |
Power supply | single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | Auto CAD |
Graphic format support | Auto CAD files. |
EMS memory | attached 32MB memory, can work under off-line condition |
Laser tube guarantee | guarantee 8 months,6000 hours life span for laser tube |
Assistant equipment | air dryer, industrial chiller, exhaust fan, computer system |
Recommend spare parts | laser tube, lens, mirror |
H.S Code | 8456110090 |
1.Fixed laser path, ensure stable optical path.
2. Laser head can be automatically adapted to jagged material, ensuring uniform cutting seam.
3. Large gantry milling and high-temperature heat treatment working table, can be used for long years without deformation.
4. Off-line control system, it's easy to set up cutting parameters on the LCD screen.
5. Sealed laser path and clean environment offer a long-time lifespan for the lens.
6. High effective and optimized exhaust system to reduce smoke during working, and keep a healthy environment.
7. Motor System: Panasonic servo motor to guarantee high precision cutting.
8. Drive System: HIWIN Linear guide rail + ball screw to guarantee high precision cutting and table moving.
What's die board laser cutting machine?
1. Laser die cutting machine is an efficient and precise cutting equipment that uses laser technology for material cutting. It uses a high-energy laser beam to instantly heat the material to melt or vaporize it, so as to achieve the purpose of cutting.
2. Laser die cutting machines have many advantages. First, it has high-precision cutting capabilities. The diameter of the laser beam is very small, reaching the micron level, so it can achieve very fine cutting and reduce material waste. Secondly, the laser die cutting machine has the ability of high-speed cutting. The power density of the laser beam is very high, which can complete the cutting process in an instant and improve production efficiency. In addition, the laser die cutting machine is suitable for cutting various materials, including metal, plastic, paper, etc., and has a wide range of application fields.
3. Laser die cutting machines also have some other features. It can realize the cutting of complex shapes without the limitation of traditional cutting tools. At the same time, the cutting process of the laser die cutting machine does not need to contact the material, which reduces the wear between the cutting tool and the material, and prolongs the service life of the cutting tool. In addition, the laser die cutting machine can also realize automatic operation, improve production efficiency and reduce labor costs.
In short, the laser die cutting machine is an efficient and precise cutting equipment with the characteristics of high precision, high speed, suitable for various materials, and capable of cutting complex shapes. It is widely used in industrial production, which can improve production efficiency and reduce production costs. Laser die cutting machine will become an important tool in the future cutting field, providing strong support for the development of all walks of life.
FAQ
We have served more than 5000 users and our die-making equipment installed in over 70 countries including European & American countries.
Die laser cutting machine for 6-30mm plywood cutting, which is a matched die-making machine for die board making used in packing, printing, and advertising industries.
One set die laser cutting machine, one set auto bending machine and some assistant manual tools will be recommended.
The regular auto bender supports 1.42x 60mm max cutting rule processing, and the customized one supports 1 x 150mm cutting rule processing.
Yes, sure thing. Just feel free to send us the die-cutting drawing in DXF format, and process videos of running samples by our machine will be sent to you. Also, the samples could be sent to you by DHL based on your account if needed.
A full set die-making machine with related device systems will be offered by TSD. Just need customers to prepare a set 7.5kw/10P air compressor and the right electricity and space. Electricity in China is 220 50Hz single phase & 380V 60Hz 3 phase. A set voltage transformer which with stabilization functions will be prepared by customers is necessary. The working space needed for a set 400watt laser and a set auto bender is around 23-25 square meters.
