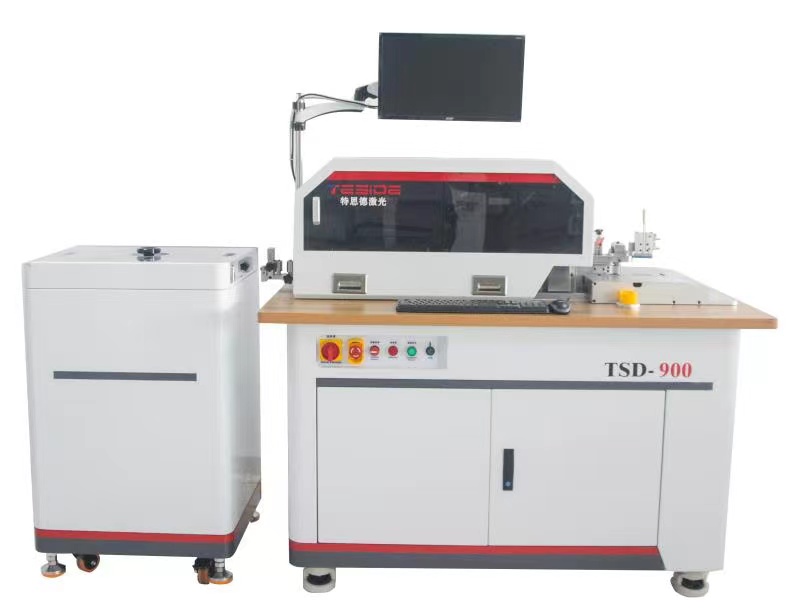

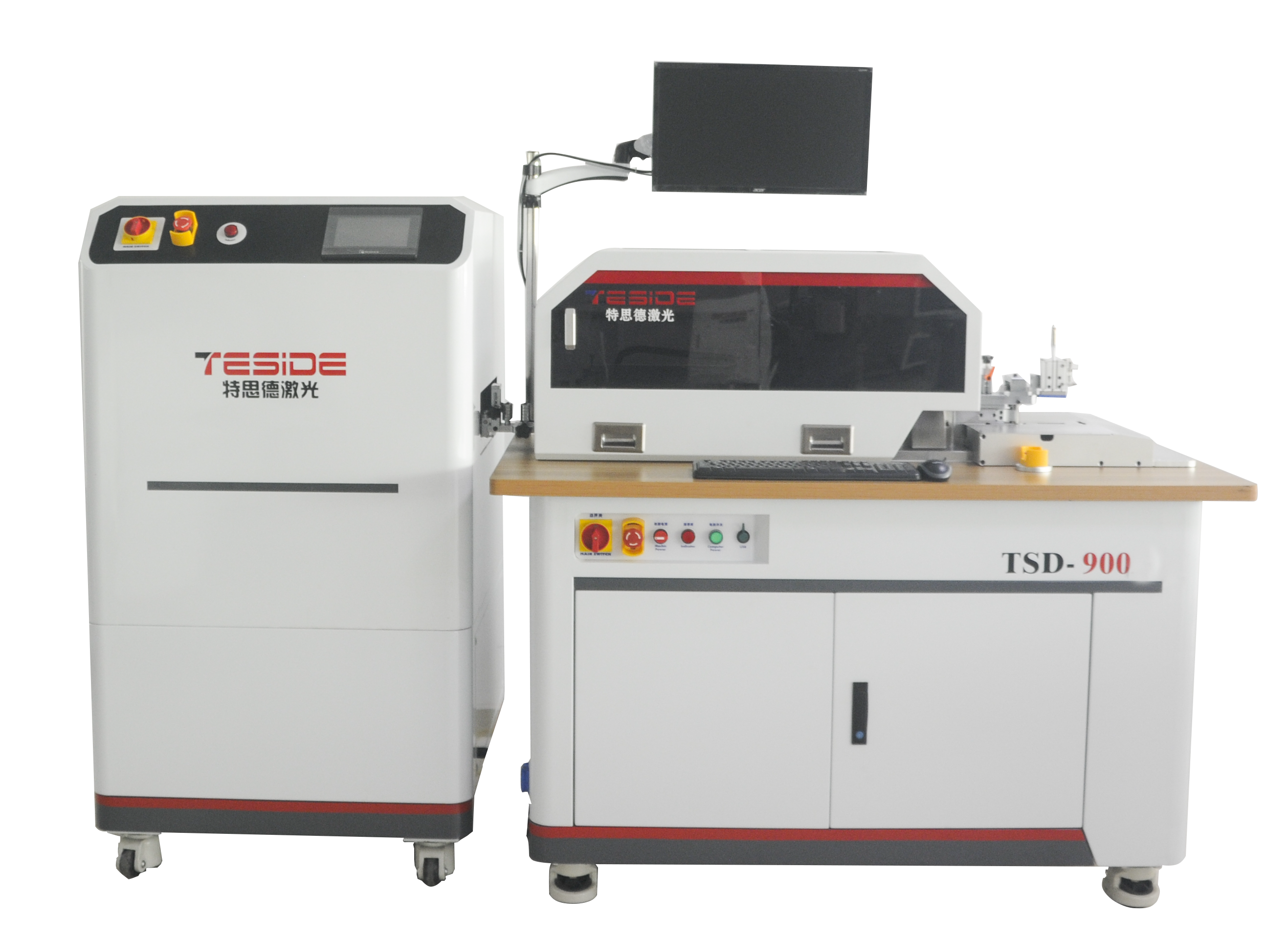

Auto Multi-Functions Auto Blade Knife Bending Machine TSD-900
Technical Parameters:
Model | TSD-900 |
Blade thickness(mm) | 0.71, 1.05 |
Blade height(mm) | 8 - 30 |
Max. bending angle | 100° |
Min. ARC radius of 90 degree | 0.4 |
Front Min. bending size | 1.0 |
5.Back Min. cutting size | 1.0 |
Feeding precision | ±0.03 |
Bending flatness | ±0.2 |
Functions | Auto bending, cutting, bridging, lipping |
Bridge width | Over 5 mm any sizes available |
Bridge height | 10-20 mm manually adjustable |
Cutting methods | Swing cutting or Auto flat cutting |
Support pattern format | DXF format (Auto CAD), DWG, AI |
Air supply | 0.6mpa |
Power supply | Three phases power 380V 50/60HZ (Standard) |
Machine total power | 1.3kw |
Gross weight. | 500kgs |
Overall dimension | 1650 × 840 × 1350mm (L×W×H) |
H.S. Code | 8462219000 |
Machine Features:
1. Possess of functions such as bending, bridge, lip cutting, cutting functions.
2. Double ball-screws feeding to keep a fast speed, high precision.
3. FUJI motor system + double Ball-screw guide- rail in design, eradicate skidding and dislocated.
4. Unique imported mold tool design, easy to bend pattern, high precision of size, durable.
5. In order to guarantee precision and long-life span, transmission and control parts are imported.
6. The self-developed latest bending control system, easy to operate and upgrade available.
7. Fully Chinese, English, Russia, Spanish, French language software interface.
8. It can be installed soon after bending patterns form the machine, no need extra more hard work.
9. Exactly to realize fully automatic bending, help to save plate making time.
To open a cutting die factory, the following equipment and tools are required:
1. Die cutting machine: It is used to cut the materials required by the die, you can choose laser cutting machine, CNC cutting machine, etc.
2. Bending machine: It is used to bend and fold the knife mold. You can choose automatic bending machine, CNC bending machine, etc.
3. Engraving machine: used for engraving and concave-convex processing on the knife mold, you can choose CNC engraving machine, laser engraving machine, etc.
4. Grinding machine: It is used for grinding and processing the cutting die, you can choose surface grinder, CNC grinder, etc.
5. Welding equipment: used for welding and assembling the knife mold, you can choose spot welding machine, argon arc welding machine, etc.
6. Inspection equipment: used for quality inspection and measurement of die cutter, you can choose image measuring instrument, three-coordinate measuring instrument, etc.
7. Auxiliary tools: including cutting tools, fixtures, molds, etc., used to assist the production and processing of cutting dies.
Technical requirements:
8. Die design and manufacturing technology: knowledge and skills related to die design and manufacturing are required, including the application of CAD/CAM software, die structure design, and tool material selection.
9. Cutting die processing technology: It is necessary to be familiar with the die cutting process and process, including cutting, bending, engraving, welding and other technologies.
10. Quality control technology: It is necessary to master the quality control methods and technologies of die cutting, including dimension measurement, surface quality inspection, assembly precision control, etc.
11. Troubleshooting and Repair Skills: The ability to troubleshoot and repair die-die equipment is required to ensure proper operation of the equipment.
12. Innovation ability: It is necessary to have the ability to continuously innovate and improve die design and manufacturing technology to meet market demand and improve product competitiveness.
In conclusion, opening a die cutting factory requires investment in proper equipment and tools, and requires relevant technical knowledge and skills to ensure die die quality and production efficiency.
