1500Watt High Power Rotary Die Board Laser Cutting Machine for Rotary Wood Cutting

Technical Parameters:

Model No.	TSD-RC1000
Laser output power	1000watts axial flow CO2 laser source
Processing range	3000mm*D800mm
X-axis range Straight axis	0-3700mm
Y-axis Range Rotation axis	D220-800mm
Cutting precision	±0.05mm
Re-Positioning Precision	±0.02mm
Cutting width	0.71mm, 1.07mm, 1.42mm
Average. cutting speed	30 meters/hour 12-15mm thickness curved board
Controlling system	PA
Transmission system	Ball screw & linear guide
Optical system	Semi-optical
Moving structure	Gantry
Chiller system	Special chiller system for laser generator system
Machine rotary table whole size	Length 7800* Width 1600 * Height 2200mm
Machine rotary table G.W.	2800kgs
Laser generator size 1000W	L2300 * W950 * H1700mm
Laser generator G.W.	1200kgs
Voltage (Working table	Single Phase 220V 50Hz
Voltage (Laser generator)	3 Phases 380V/50Hz/30A
Pressure of accessory air source	>0.6Mpa
Laser generator gas matched	He, N2, CO2(99.999%)
Computer & Monitor	Windows 7
Industrial chiller for laser generator	CW-7500 EN 460H
Industrial chiller for lens &mirror	CW-5000 AIS
Exhaust fan 1100w	CZR105E-11 2 set
Air dryer 1.5m3/min	ND-10AA
Voltage stabilizer 30KVA	PH-330
Panasonic AC Servo motor 1.5KW	MHME152GCGM

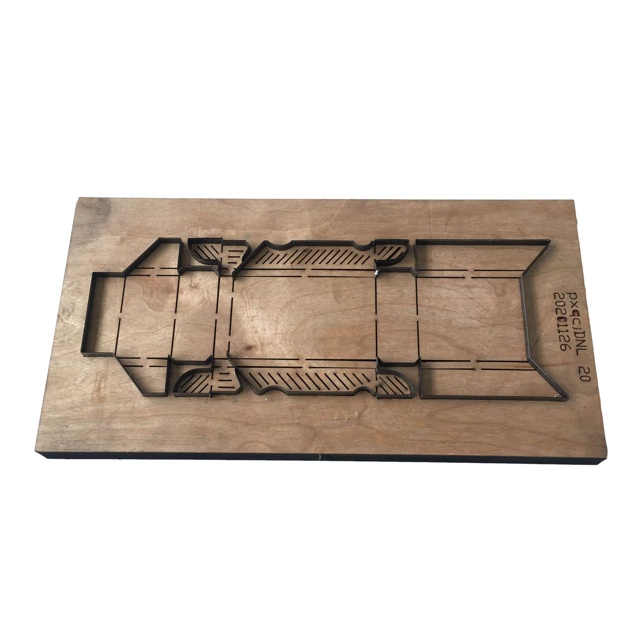

Machine Features:

1. Gantry structure, stable working, small floor space required for the machine.

2. Laser cutting head coming with the automatic touching system, adapt to the jagged materials and keep cutting kerf precision.

3. Adopt Panasonic servo drive and motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.

4. Highly effective smoke-exhausting system coming with optimized dust collector device to create a healthy environment for the operator.
