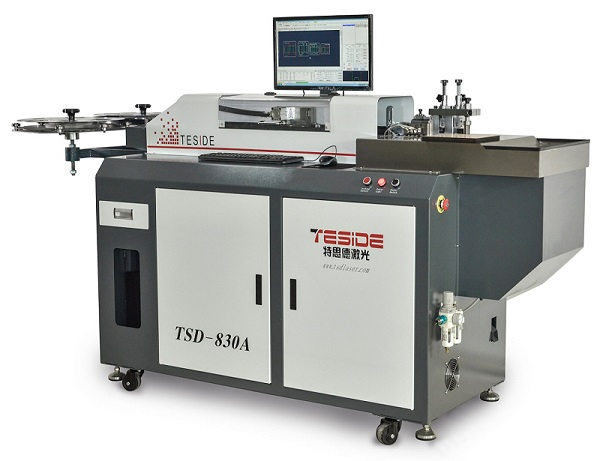

Wooden Die Auto Blade Bending Machine for Steel Rule Bending

Wooden Die Auto Blade Bending Machine for Steel Rule Bending

Technical Parameters:

Bending Blade thickness(mm)	1.5pt, 2pt, 3pt
Bending Blade height(mm)	8-30mm
Bridge width	Over 5.5mm any sizes available.
Bridge tool size	5.5x18mm, 5.5x15mm
Max. bending angle	100°
Functions	fully automatic bending, cutting, bridge, lipping
Optional functions	perforating
Cutting methods	cutting or auto flat cutting
Optimal pattern format	Auto CAD, Core Draw files are supported
Air supply	0.6mpa
Power supply	380V 50Hz (Standard) 3 Phases
Machine total power	1.3KW
Weight	500KGS
Overall dimension	280011201540mm(LWH)
H.S. Code	8462219000

Functions and Usage:

1.Basic function such as bending, bridging, front lipping, back lipping, cutting and flat cutting.

2. Serve motor system+ball screw guide rail design, avoiding skidding and error in length.

3. Unique tool design make it is durable and easy to bend with high precision.

4. In order to gurantee precisio and long-life span, transmission and control parts are imported.
