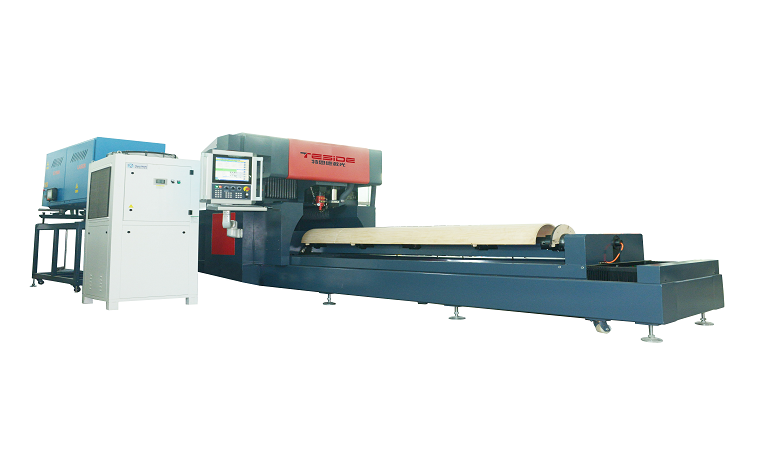

TSD-RC1000-1000Watt Rotary Die Board Laser Cutting Machine
Technical Parameters:
Model No. | TSD-RC1000 |
Laser output power | 1000watts axial flow CO2 laser source |
Processing range | 3000mm*D800mm |
X-axis range Straight axis | 0-3700mm |
Y-axis Range Rotation axis | D220-800mm |
Cutting precision | ±0.05mm |
Re-Positioning Precision | ±0.02mm |
Cutting width | 0.71mm, 1.07mm, 1.42mm |
Average. cutting speed | 30 meters/hour 12-15mm thickness curved board |
Controlling system | PA |
Transmission system | Ball screw & linear guide |
Optical system | Semi-optical |
Moving structure | Gantry |
Chiller system | Special chiller system for laser generator system |
Machine rotary table whole size | Length 7800* Width 1600 * Height 2200mm |
Machine rotary table G.W. | 2800kgs |
Laser generator size 1000W | L2300 * W950 * H1700mm |
Laser generator G.W. | 1200kgs |
Voltage (Working table | Single Phase 220V 50Hz |
Voltage (Laser generator) | 3 Phases 380V/50Hz/30A |
Pressure of accessory air source | >0.6Mpa |
Laser generator gas matched | He, N2, CO2(99.999%) |
Computer & Monitor | Windows 7 |
Industrial chiller for laser generator | CW-7500 EN 460H |
Industrial chiller for lens &mirror | CW-5000 AIS |
Exhaust fan 1100w | CZR105E-11 2 set |
Air dryer 1.5m3/min | ND-10AA |
Voltage stabilizer 30KVA | PH-330 |
Panasonic AC Servo motor 1.5KW | MHME152GCGM |
Machine Features:
1.Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, reasonable floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from II-VI to make laser path thinner and the cut stronger.
2.Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
3.Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4.Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5.Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6.Software is easy to operate, simple and easy to understand.
7.Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8.Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
