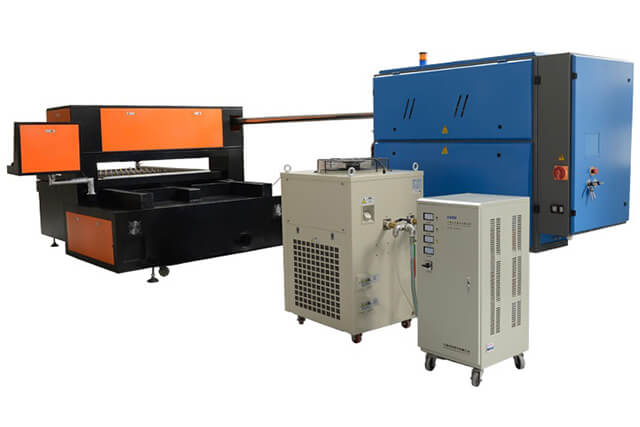

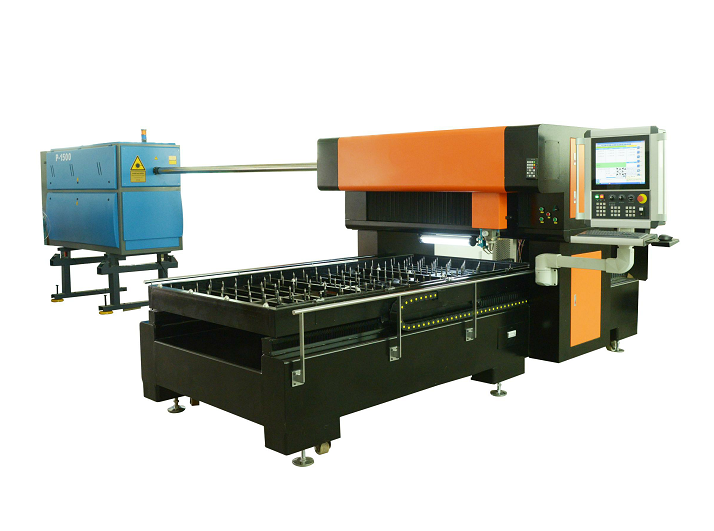

TSD-LC2000-1325-2000Watt Die Board Laser Cutting Machine
Parameters of 2000w Flatbed Laser Cutting Machine:
Machine Model No. | TSD-LC20000-1325 |
Processing scale | 1300mm*2500mm |
Machine weight | 2500KGS |
Laser type | High power axial flow CO2 Sealed laser generator |
Laser power | 2000W |
Driving system | 3 Axial Servo Motor |
Table power supply | Single phase 220V 50Hz 10A |
Laser power supply | 3 Phases 380V 50Hz 12kVA |
Controlling system | PMAC motion card |
Optical system | Semi-optical |
Moving structure | Gantry |
Cutting precision | ±0.05mm |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould cutting kerf | 0.45mm, 0.71mm,1.07mm…etc. controllable |
Cutting speed | ≥1m/min, 90meters/h for 18mm plywood cutting |
Protective gas | Dry and oil-free air |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | CorelDraw, AutoCAD, Photo Shop |
Graphic format support | DXF, BMP, JPG, GIF, PGN, TIF, PLT |
EMS memory | attached 64MB memory, can work under off-line condition |
In gas | He, N2, CO2 (99.999%) |
Transmission system | Ball screw & linear guide |
Overall dimensions | 3600*2300*1800mm (L*W*H) |
H.S Code | 8456110090 |
Applications:
It’s widely used in printing, package, die making, advertising signs, metal plates, light-fixture, hardware, electric equipment, Automotive, electrical components…etc. industries.
Applicable materials:
Plywood, MDF board, acrylic, iron board, steel board, stainless steel board, aluminum board, copper board…etc. metal and non-metal materials.
Machine Features:
1. Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.
2. Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
3. Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4. Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5. Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6. Software is easy to operate, simple and easy to understand
7. Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8. Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
