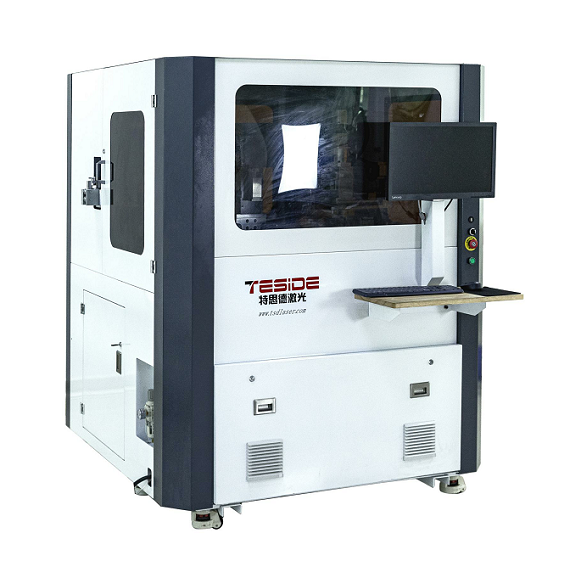

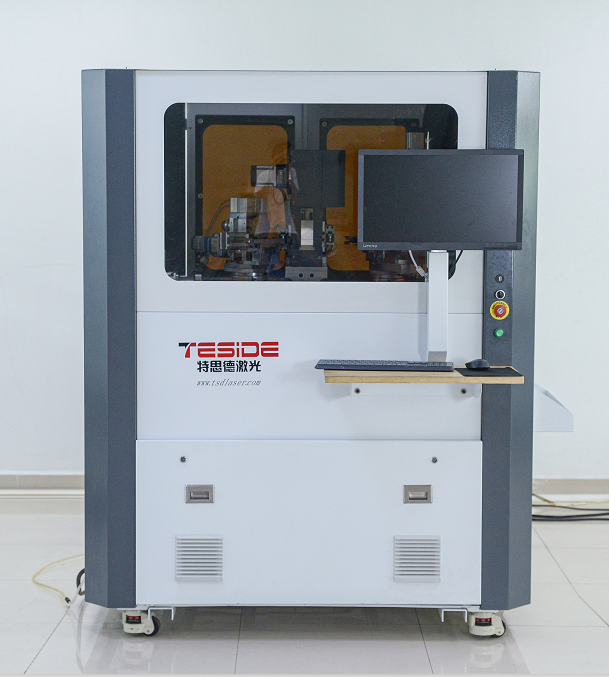

TSD LASER Rotary Bending Machine for Rotary Die Board Cutting and Corrugated Boxes Making
Technical Parameters:
Bending rule thickness(mm) | 4pt |
Bending rule diameter(mm) | 200-800mm |
Bending rule height(mm) | 25-27mm |
Standard functions | Bending, cutting, perforation, bridge |
Cutting methods | Auto flat cutting |
Bridge size | Bridge width 10/13mm, height 10-18mm |

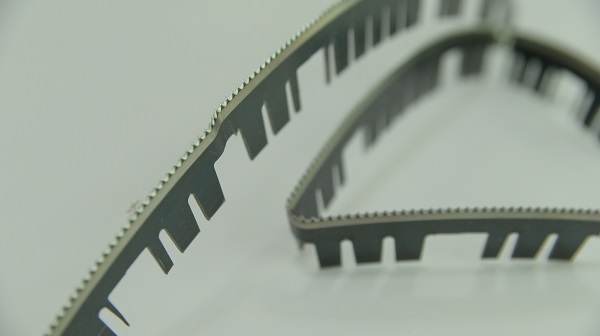

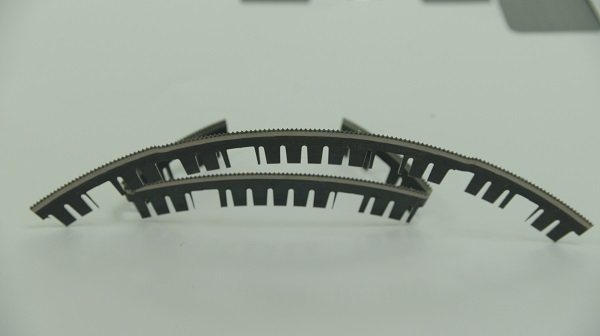

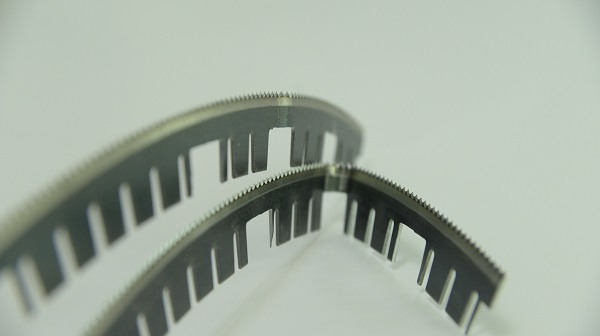

Perforation size | Perforation width 2-13mm, height 0.5-6mm |
Mold selection | Customized |
Operation system | Windows 10 |
Optimal pattern format | DXF, DWG, AI, CF2 |
Air supply | 0.6-0.8Mpa |
Power supply | 1P 220V, 20A, 50/60Hz |
Machine total power | 3KW |
Machine weight | 830KGS |
Overall dimension | 1460*1500*1840mm(L*W*H) |
HS CODE | 8462219000 |
Machine Features:
1. It supports to work on both flat and rotary steel rule, easy to exchange.
2. Various diameter of rotary steel rule, 250-600mm.
3. Automatically matched with different diameters while changing shortly.
4. Servo motor control system, which makes more efficiently and accurately.
5. Innovative design with stable machine body, which can be used for long years.
FAQ
We have served more than 5000 users and our die-making equipment installed in over 70 countries including European & American countries.
Die laser cutting machine for 6-30mm plywood cutting, which is a matched die-making machine for die board making used in packing, printing, and advertising industries.
One set die laser cutting machine, one set auto bending machine and some assistant manual tools will be recommended.
The regular auto bender supports 1.42x 60mm max cutting rule processing, and the customized one supports 1 x 150mm cutting rule processing.
Yes, sure thing. Just feel free to send us the die-cutting drawing in DXF format, and process videos of running samples by our machine will be sent to you. Also, the samples could be sent to you by DHL based on your account if needed.
A full set die-making machine with related device systems will be offered by TSD. Just need customers to prepare a set 7.5kw/10P air compressor and the right electricity and space. Electricity in China is 220 50Hz single phase & 380V 60Hz 3 phase. A set voltage transformer which with stabilization functions will be prepared by customers is necessary. The working space needed for a set 400watt laser and a set auto bender is around 23-25 square meters.
