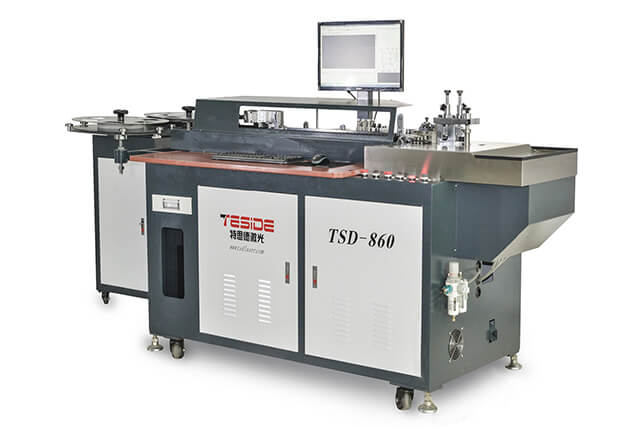

TSD-860 Automatic Blade Bending and Cutting Machine
Technical Parameter:
Bending rule thickness(mm) | 0.71mm/2pt, 1.05m/3pt |
Bending rule height(mm) | 23mm-30mm |
Bridge width | Over 5.5mm any sizes available. |
Bridge height | 15mm, 18mm |
Max. bending angle | 100° |
Min. ARC radius 90 degree | 0.4MM |
Front Min. bending size | 1.5MM |
Back Min. cutting size | 1.0MM |
Feeding precision | ±0.03mm |
Bending flatness | ±0.2mm |
Functions | Cutting rule: Bending, cutting, lipping, bridge functions Creasing rule: cutting and bridge functions |
Cutting methods | Swing cutting or Automatic flat cutting |
Optimal pattern format | Auto CAD, Core Draw files are supported |
Air supply | 0.6mpa |
Power supply | 380V 50/60Hz (Standard) 3phase |
Machine total power | 2KW |
Weight | 550KGS |
Overall dimension | 2700×1150×1350mm(L×W×H) |
H.S. Code | 8462219000 |
Functions and usage:
a) Two-track design, can work at one time to improve efficiency.
b) Auto bender track can realize functions of bending, bridge, lipping, fast andprecision.
c) Auto cutter track can realize auto-bridge and flat cutting, simple and practical.
d) Servo motor system + Ball-screw guide- rail in design, eradicate skidding anddislocated.
e) Unique imported mould tool design, easy to bend pattern, high precision of size, durable
f) In order to guarantee precision and long-life span, transmission and control parts are imported
g) Self-developed latest bending control system, easy to operate and upgradeavailable.
h) Fully English interface, easy to learn how to operate, make bending work easy.
i) It can be installed soon after bending patterns form the machine, no need extra more hard work.
j) It’s widely used in box mould, doll mould bending, sticker die…etc.
k) Exactly to realize fully automatic bending, help to save plate making time.
l) It’s the first creation of die cutting industry to combine automatic bender and automatic cutter into one set to make highly automated die plates manufacturing.
