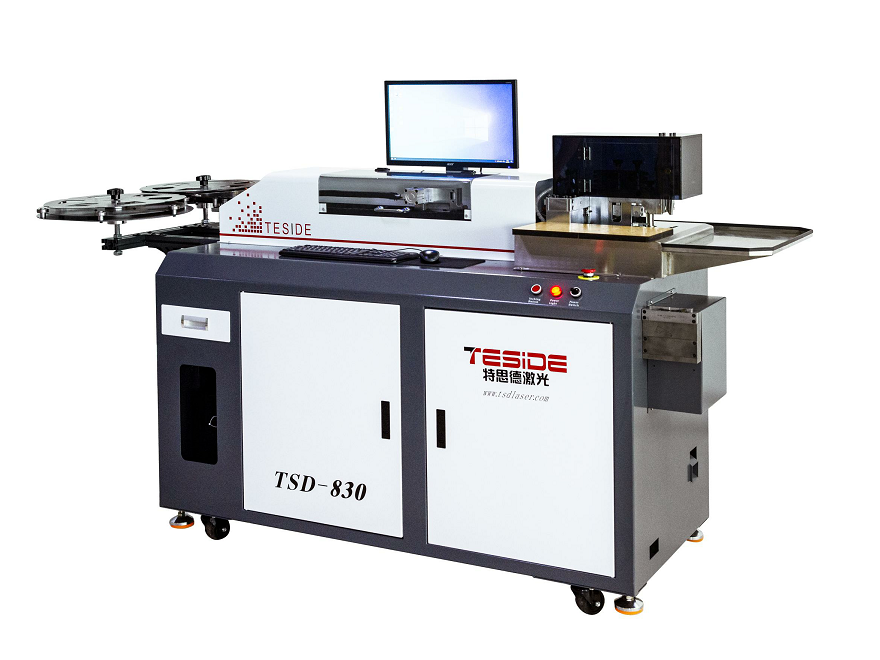

TSD-830 Automatic Blade Bending Machine
Technical Parameters:
Bending Blade thickness(mm) | 0.71mm/1.05mm |
Bending Blade height(mm) | 23.8mm-30mm |
Bridge width | Over 5.5mm any sizes available. |
Bridge tool size | 5.5x18mm, 5.5x15mm |
Max. bending angle | 100° |
Min. ARC radius of 90 degree | 0.4MM |
Front Min. bending size | 1.5MM |
Back Min. cutting size | 1.0MM |
Feeding precision | ±0.03mm |
Bending flatness | ±0.2mm |
Functions | auto bending, cutting, bridge, lipping |
Cutting methods | cutting or auto flat cutting |
Optimal pattern format | Auto CAD, Core Draw files are supported |
Air supply | 0.6mpa |
Power supply | 380V 50Hz (Standard) 3 Phases |
Machine total power | 1.3KW |
Weight. | 500KGS |
Overall dimension | 2800*1120*1540mm(L*W*H) |
H.S. Code | 8462219000 |
Functions and Usage:
Possess of functions such as bending, bridge, flat cutting and lipping functions.
Fuji Servo motor system + Ball-screw guide rail in design, eradicate skidding and dislocated.
Unique imported mould tool design, easy to bend pattern, high precision of size, durable
In order to guarantee precision and long-life span, transmission and control parts are imported
Self-developed latest bending control system, easy to operate and upgradeavailable.
Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
It can be installed soon after bending patterns form the machine, no need extra more hard work.
It’s widely used in sticker die…etc..
Exactly to realize fully automatic bending, help to save plate makingtime.
