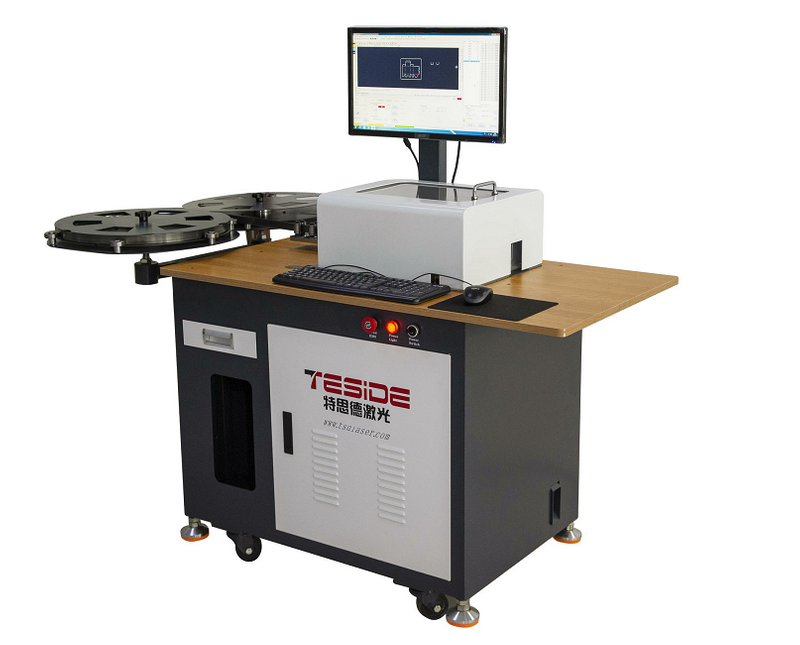

TSD-810A Auto Cutting Machine
Technical Parameters:
Cutting line thickness(mm) | 2pt,3pt, 4pt |
Cutting line height(mm) | 22-26MM |
Bridge tool size | 15mm*6mm, 18*6mm, or customized size |
Bridge width | 6mm, adjustable by software |
Bridge height | 15mm, 18mm |
Perforation tool size | 1*2mm, 2*2mm, 3*2mm, or customized size |
Support input and output files | Auto CAD files |
Air supply | 0.6mpa |
Power supply | 380V 50/60Hz 3P 10A |
Machine total power | 0.7KW |
Gross weight | 280KGS |
Overall dimension | 1650×1050×1580mm(L×W×H) |
H.S. Code | 8462 3190.00 |
Remarks | With computer and functional software |
Functions and usage:
1. Able to select coil cutting rule and creasing rule; multi functions, easy to exchange tools.
2. Double rolling plate design to exchange materials rapidly.
3. Self-developed control software, friendly user window, easy operation and easy learn.
