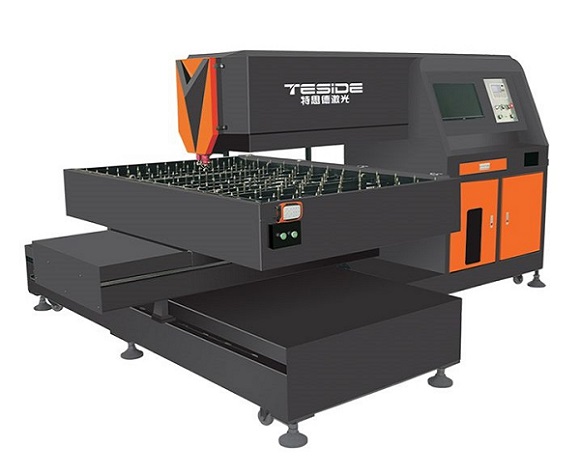

Steel Rule Laser Die Board Making Cutting Machinery

Steel Rule Laser Die Board Making Cutting Machinery

Technical Specifications:

Machine model No.	TSD-LC400-1325
Laser Type	TSD Laser CO2 direct-current stimulated glass laser
Cutting area	width 1300mm x length 2500mm
Machine weight	2000kgs
Driving motor	Panasonic servo motor
Cutting depth	15mm-18mm-20mm plywood
Cutting precision	±0.05mm
USB port connection	Yes
Operating temperature	0-45°C
Mould knife thickness	0.45mm, 0.71mm,1.07mm…etc. controllable
Cutting speed 400W	25-30meters/hour 18-20mm plywood
Protective gas	Dry and oil-free air
Power supply	single-phase electricity 220V±5% 50Hz 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	Auto CAD
Graphic format support	Auto CAD files.
EMS memory	attached 32MB memory, can work under off-line condition
Laser tube guarantee	guarantee 8 months,6000 hours life span for laser tube
Assistant equipment	air dryer, industrial chiller, exhaust fan, computer system
Recommend spare parts	laser tube, lens, mirror
H.S Code	8456110090

Machine Feature:
1. Fixed laser path, ensure stable optical path.

2. Laser head can be automatically adapted to jagged material, ensuring uniform cutting seam.

3. Large gantry milling and high-temperature heat treatment working table, can be used for long years without deformation.

4. Off-line control system, it's easy to set up cutting parameters on the LCD screen.

5. Sealed laser path and clean environment offer a long-time lifespan for the lens.

6. High effective and optimized exhaust system to reduce smoke during working, and keep a healthy environment.
