Steel Blade Automatic Bending Machine TSD-830A Packing Steel Rule Die Making

Steel Blade Automatic Bending Machine TSD-830A Packing Steel Rule Die Making

Technical Parameters:

Bending Blade thickness(mm)	0.71mm/1.05mm
Bending Blade height(mm)	23.8mm-30mm
Bridge width	Over 5.5mm any sizes available.
Bridge tool size	5.5x18mm, 5.5x15mm
Max. bending angle	100°
Min. ARC radius of 90 degree	0.4MM
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	fully automatic bending, cutting, bridge, lipping
Cutting methods	cutting or auto flat cutting
Optimal pattern format	Auto CAD, Core Draw files are supported
Air supply	0.6mpa
Power supply	380V 50Hz (Standard) 3 Phases
Machine total power	1.3KW
Weight	500KGS
Overall dimension	280011201540mm(LWH)
H.S. Code	8462219000

Functions and Usage:

Possess of functions such as bending, bridge, flat cutting and lipping functions.
Fuji Servo motor system + Ball-screw guide rail in design, eradicate skidding and dislocated.
Unique imported mould tool design, easy to bend pattern, high precision of size, durable
In order to guarantee precision and long-life span, transmission and control parts areimported
Self-developed latest bending control system, easy to operate and upgrade available.
Fully English & Chinese interface, easy to learn how to operate, make bending workeasy.

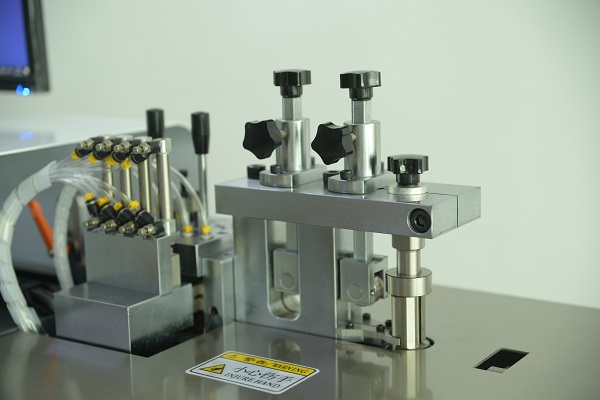

830A

Functions for 830A
