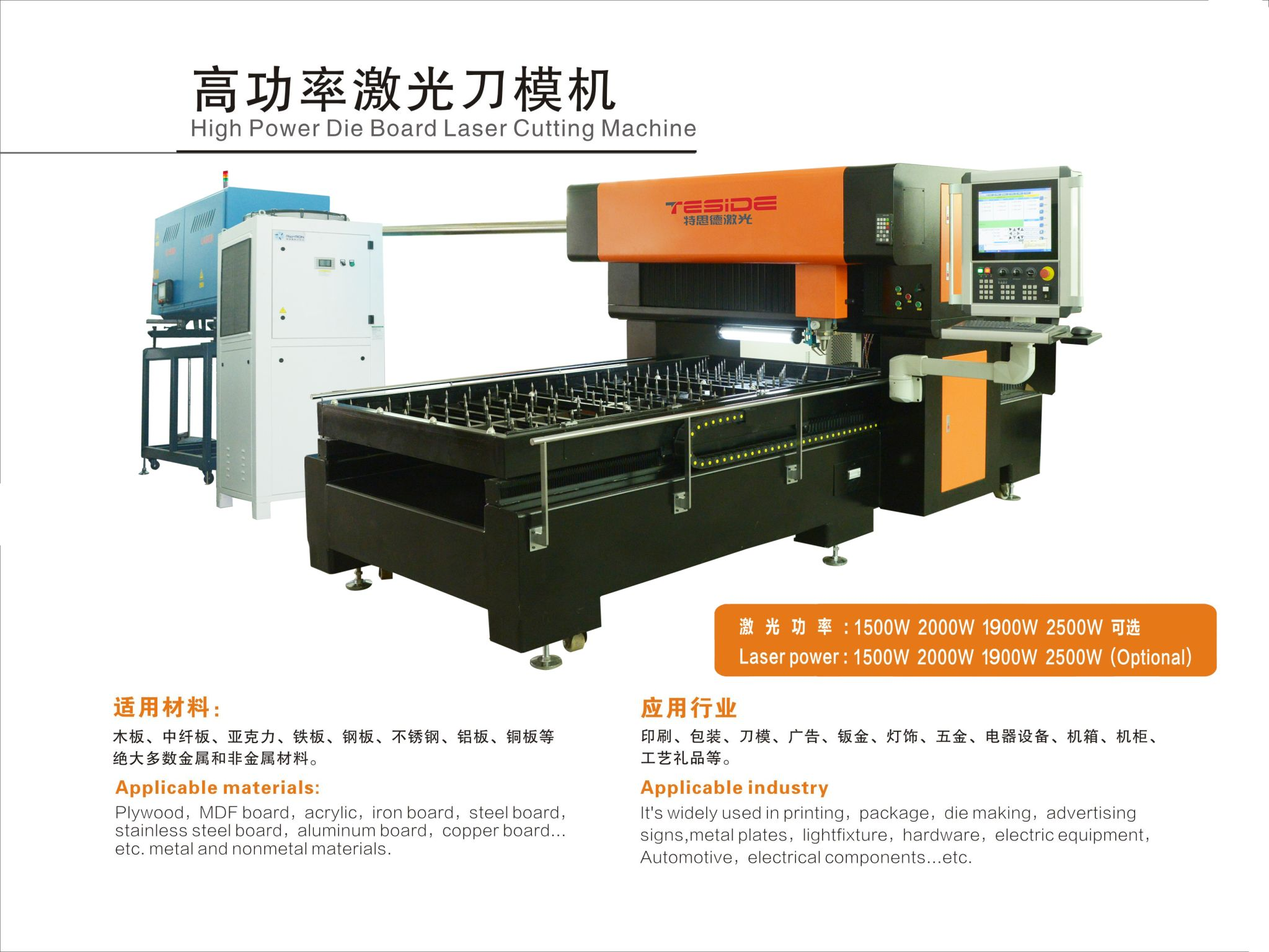

Plywood Die Board Cutting Laser Die Making Machine
Technical Specifications:
Machine and Assistant Features:
Motor System: Panasonic servo motor to guarantee high precision cutting.
Drive System: HIWIN linear guide rail + ball screw to guarantee high precision cutting and table moving
External light path system: USA II-VI optical lens, reflector mirror to guarantee strong laser focus.
Cooling system: China Guangzhou S & A CW-6100 Industrial chiller water cooling.
Exhausting system: one set 750watt exhaust fan to carry out smoking.
Laser control system: Fully English language TSD laser software, PC control.
Laser power Devices: China brand JINGXING.
Fixed laser path, ensure the stability of the optical path.
Laser cutting head coming with auto touching following system, adapt to the jagged materials.
High temperature heat treatment working table and large gantry milling processing.
High power laser cutting machines 1000w/1500w/1900w/2200w are available as well.

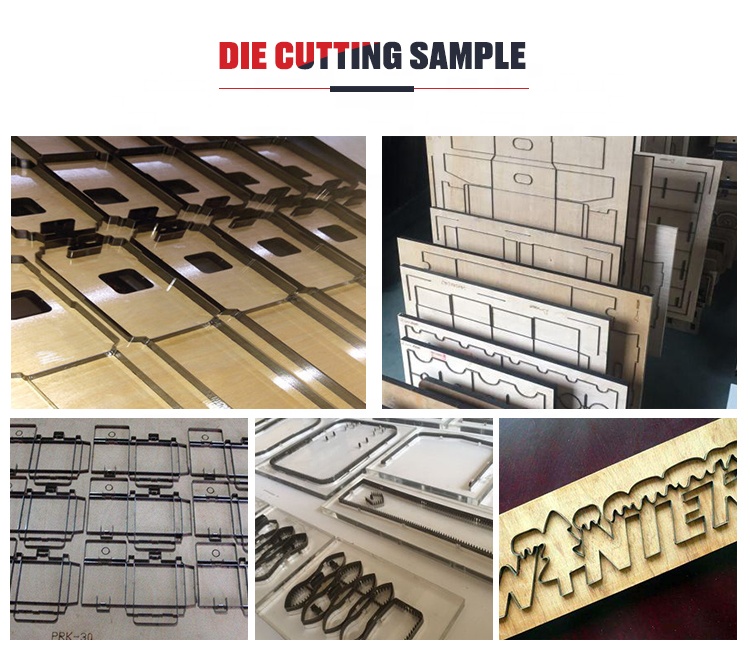

400W/600W/800W: Moving table and fix cutting head, cutting speed around 40 meters per hour for 18mm plywood cutting, less electricity consumption 5kw-7kw per hour, required air compressor, working area 4000*5000mm, around 20 square meters;
1000W/1500W/1900W/2200W: Table is fixed and cutting head is movable, cutting speed around 60-120 meters per hour for 18mm plywood cutting, electricity consumption at least 8kw-12kw per hour, need prepare air compressor, 3 kinds of gas (CO2, N2, He, purity 99.999%), working area at least 5000*8000mm, 40-42 square meters.
Machine Features:
1. Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.
2. Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
3. Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4. Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5. Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6. Software is easy to operate, simple and easy to understand
7. Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8. Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
