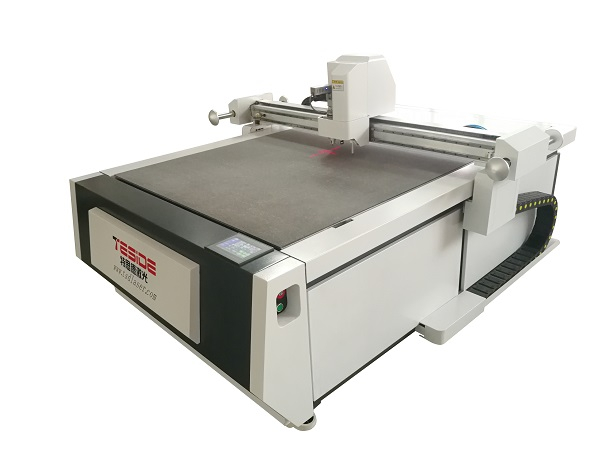

Opencell Rubber Cutting with Plotter Digital Cutting Machine
Machine Technical Parameters:
Applicable Materials:
Cardboard, gray board, corrugated paper, honeycomb board, KT board, PVC, EVA, pearl cotton,
carbon fiber, leather cloth, and other non-metallic materials.
Main Features and Functions:
1. It is equipped with two interchangeable heads and an integral head frame, easy to change tools.
2. Seven-axis high-speed motion controller, modular installation, convenient for maintenance.
3. The cutting depth can be adjusted arbitrarily.
4. Simple parameter setting, different materials can be processed as long as the thickness and speed are set.
5. It can easily expand the functions of the upgraded equipment and load new modules.
6. A variety of optional tools, vibrating knife, indentation, half knife, oblique knife, foam knife, milling knife, round knife, etc.
7. High-speed vibrating head, the high-quality cutting effect can be achieved at high-efficiency cutting speed.
8. Integral partition suction, only in the cutting area that is working, the suction function is automatically turned on,
and the suction in the non-working area is disabled.
9. Positioning function: use laser light to accurately position.
10. Drawing function: It can draw various high-precision patterns.

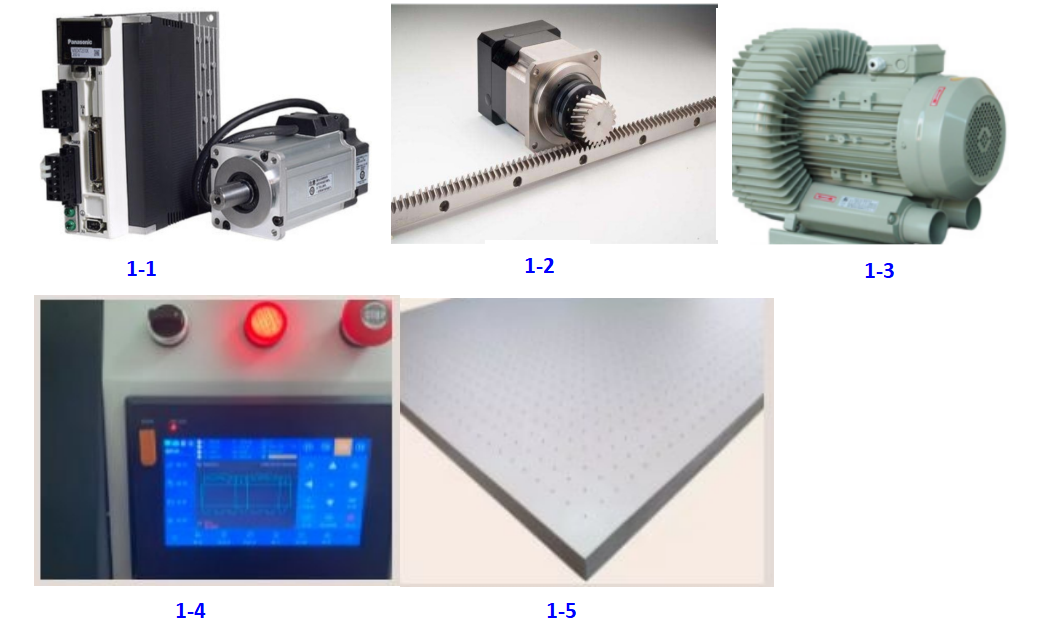

Driven by precision servo motor (1-1), the computer controls the cutting depth of the blade and the pressure wheel to make perfect cutting, half-through, indentation, and V-groove effects.
High precision rack drive(1-2), 0.05mm cutting accuracy high speed cutting
Vacuum suction pump(1-3) 5.5KW
Touch screen operation(1-4)
Vacuum aluminum adsorption platform(1-5)
The pump is a universal air source for blowing and suction, with high pressure and large flow.
It is applied to the corrugated cardboard cut by the suction box type proofing machine,
Packaging materials such as cardboard and gray board.
