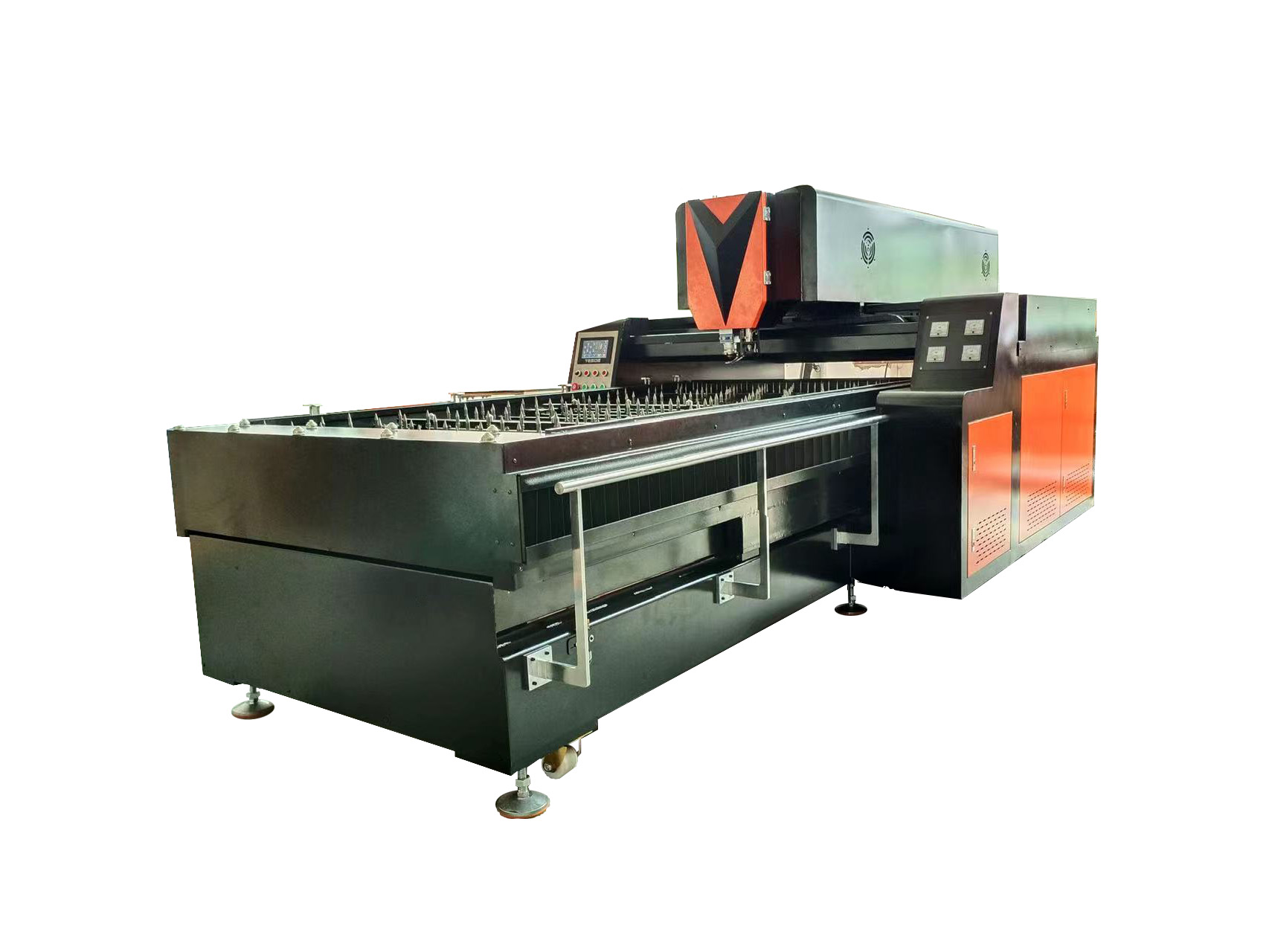

New Model 600Watt Die Laser Cutting Machine TSD-LC600-1325 with Movable Laser Head for Plywood Cutting

New Model 600Watt Die Laser Cutting Machine TSD-LC600-1325 with Movable Laser Head for Plywood Cutting

Laser working table is fixed and laser head is movable.

Machine model No.	TSD-LC600-1325
Laser Type	TSD Laser CO2 direct-current stimulated glass laser
Cutting area	width 1300mm x length 2500mm
Machine weight	2000kgs
Driving motor	Servo motor
Cutting depth	15mm-18mm-20mm plywood
Cutting precision	±0.05mm
USB port connection	Yes
Operating temperature	0-45°C
Mould knife thickness	0.45mm, 0.71mm,1.07mm…etc. controllable
Cutting speed 400W	25-30meters/hour 18-20mm plywood
Protective gas	Dry and oil-free air
Power supply	single-phase electricity 220V±5% 50Hz 10A
Numerical control panel	LCD screen, light-touched key-press
Software supported	Auto CAD
Graphic format support	Auto CAD files.
EMS memory	attached 32MB memory, can work under off-line condition
Laser tube guarantee	guarantee 8 months,6000 hours life span for laser tube
Assistant equipment	air dryer, industrial chiller, exhaust fan, computer system
Recommend spare parts	laser tube, lens, mirror
H.S Code	8456110090

Machine and Assistant Features:

Motor System: Servo motor to guarantee high precision cutting.
Drive System: HIWIN linear guide rail + ball screw to guarantee high precision cutting and table moving
External light path system: USA II-VI optical lens, reflector mirror to guarantee strong laser focus.
Cooling system: China Guangzhou S & A CW-6200 Industrial chiller water cooling.
Exhausting system: one set 750watt exhaust fan to carry out smoking.
Laser control system: Fully English language TSD laser software, PC control.
Laser power Devices: China brand JINGXING.
Fixed laser path, ensure the stability of the optical path.
Laser cutting head coming with auto touching following system, adapt to the jagged materials.
High temperature heat treatment working table and large gantry milling processing.
Stable machine design, high strength of machine bed, long-year working.
Low consumption of voltage about 5-7 kilowatt per hour.

Packing Info for refer:

In total 2 middle wooden cases packages.

Machine size & Door size requested for refer:

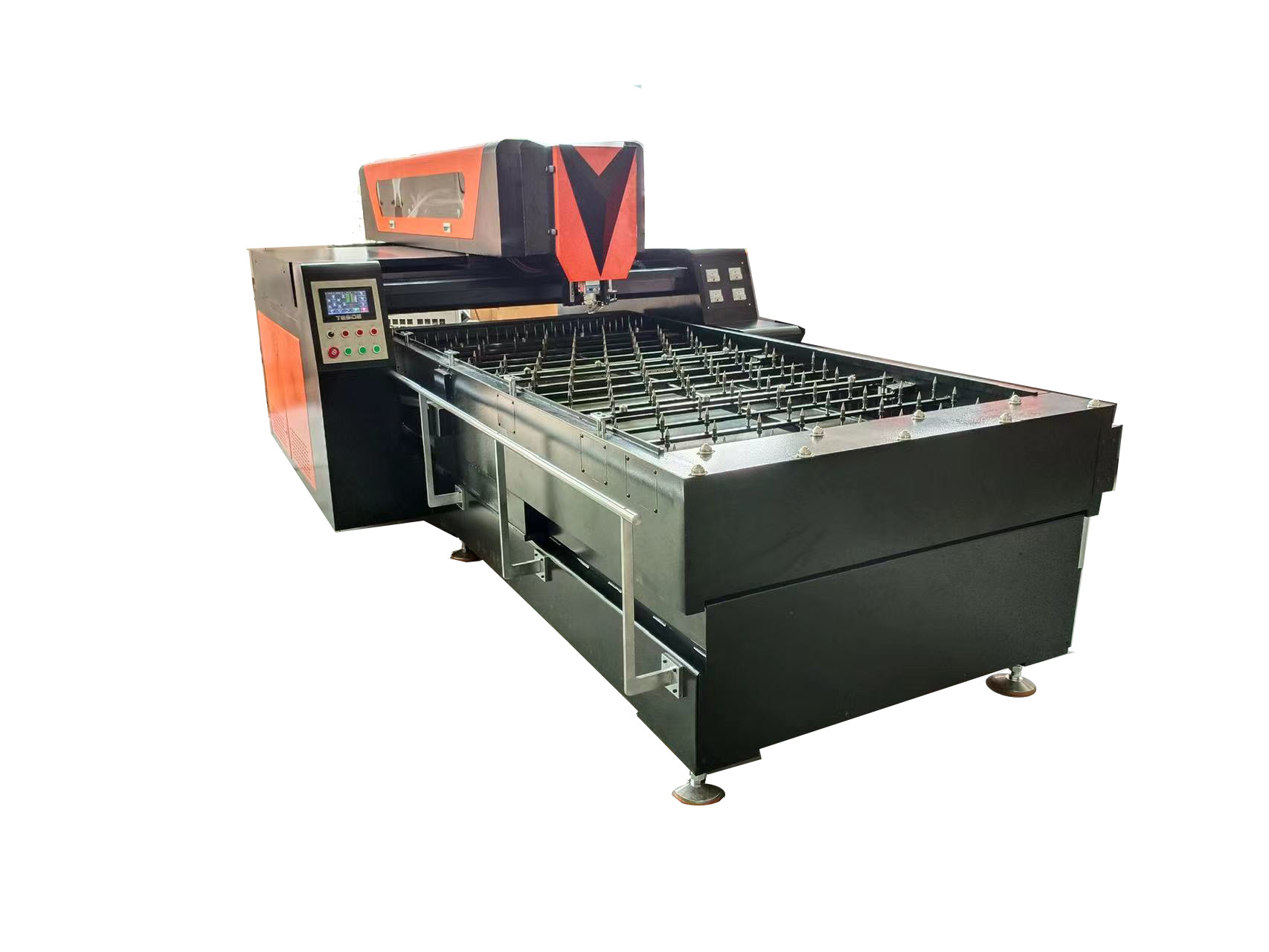

TSD-LC400W-1218 (Laser head fixed, cutting table moving)
Overall whole machine size	L2.75M x W3.9M x H1.65M
Machine working size	L4.0M x W4.5M x H1.65M
Door size requested	W2.0M x H 1.8M
