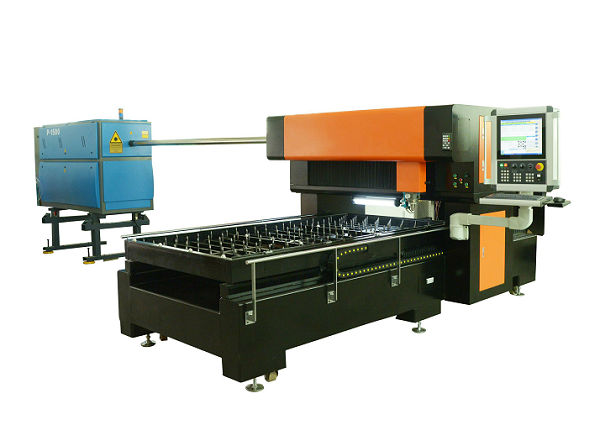

Model No. | TSD-LC2000-1325 |
Laser output power | 2000watts axial flow CO2 laser source |
X-axis travel-length | 1300mm |
Y-axis travel-length | 2500mm |
Cutting precision | ±0.05mm |
Re-Positioning Precision | ≤0.02mm |
Cutting width | 1.5pt, 2pt, 3pt and 4pt at one line (die board) |
Average. cutting speed | 80-95meters/hour for 18mm plywood |
Transmission system | Ball screw & linear guide |
Driving system | 3 axial servo |
Optical system | Semi-optical |
Moving structure | Gantry |
Chiller system | Special chiller system for laser generator system |
Machine table whole sizes. | 3700*2300*1350mm |
Laser generator size | L1900 * W550 * H1700mm |
G. Weight | 3500kgs |
Voltage (Working table) | Single Phase 220V 50Hz |
Voltage (Laser generator) | 3 Phases 380V/50Hz/30A |
Pressure of accessory air source | 0.8Mpa |
Laser generator gas matched | He, N2,CO2(99.999%) |
