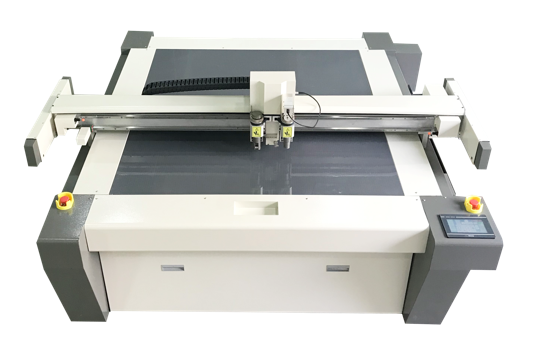

Large Format Flatbed Cutting Machine With Vibrating Knife
Technical Parameters:
| Machine model | TSD-EC1713 | ||
| Cutting range | 1700X1300mm | ||
| Machine size | 2600X2300mm | ||
| Machine weight | 650KG | ||
| Maximum cutting speed | 1200mm/s | ||
| Maximum cutting thickness | 50mm | ||
| Cutting accuracy | ± 0.1 mm | ||
| Tool configuration | Vibrating knife, pressure wheel, pen, drag knife | ||
| Optional function | V cutter, foam knife, CCD positioning system | ||
| Equipment power supply | 380V, 50HZ/60HZ | ||
| Customs code | 8441100000 | ||
Machine Fetures:
1. TSD computer cutting prototype is widely used in product proofing in printing and packaging industry.
2. The equipment is equipped with cutting, indentation, slotting, brush and other functions.
3. The forming of paper products (plastic products) can be completed without cutting die.
4. If the customer is not satisfied with the designed box shape or size, it can be modified at any time and sample immediately.
5. After confirming that the products meet the requirements, mass production can be carried out.
6. For small batch orders, there is no need to make a knife mold to die cut products.
7. It can be directly produced by computer cutting prototype, which is convenient and fast, and saves mold cost and time.
