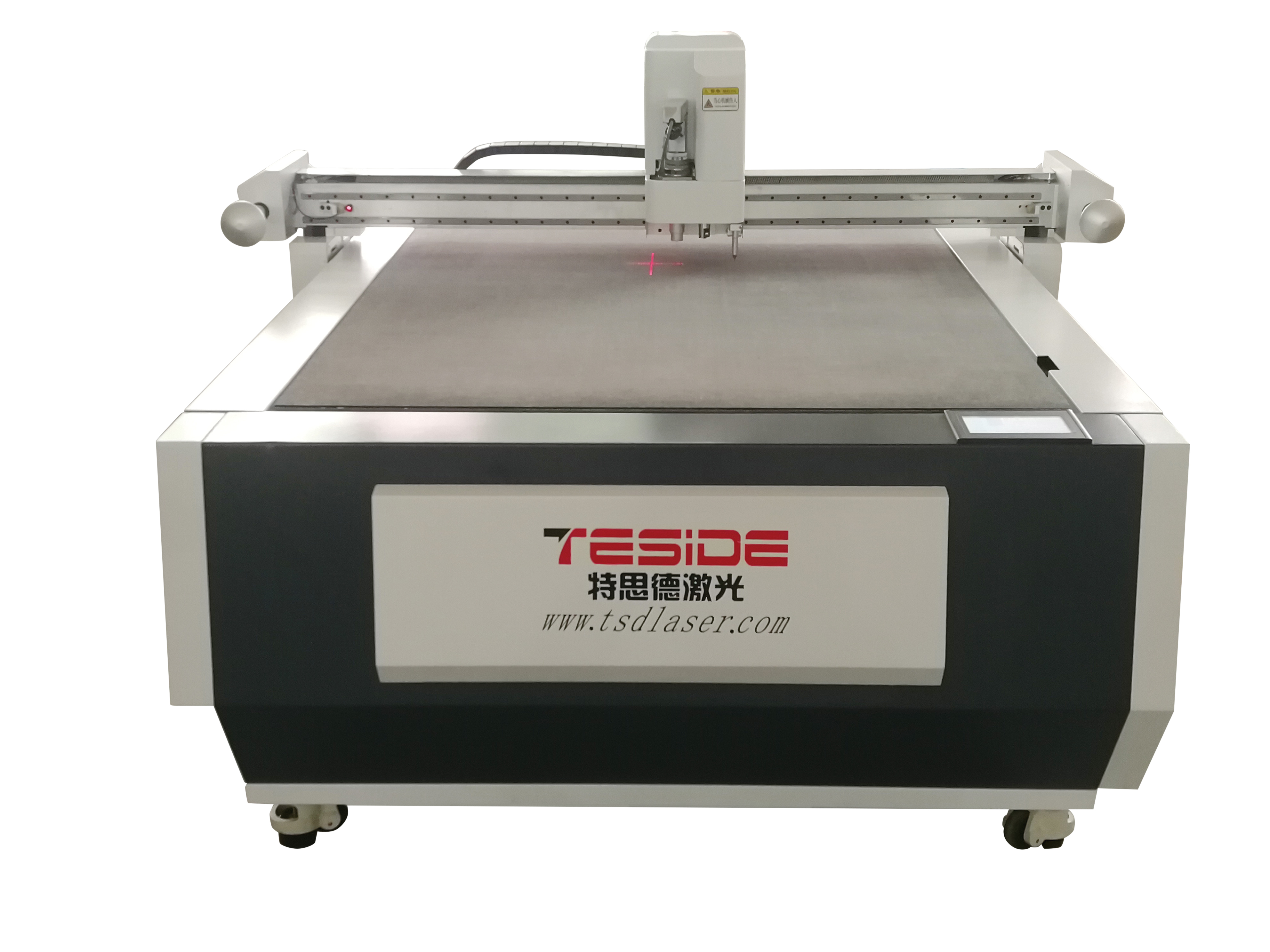

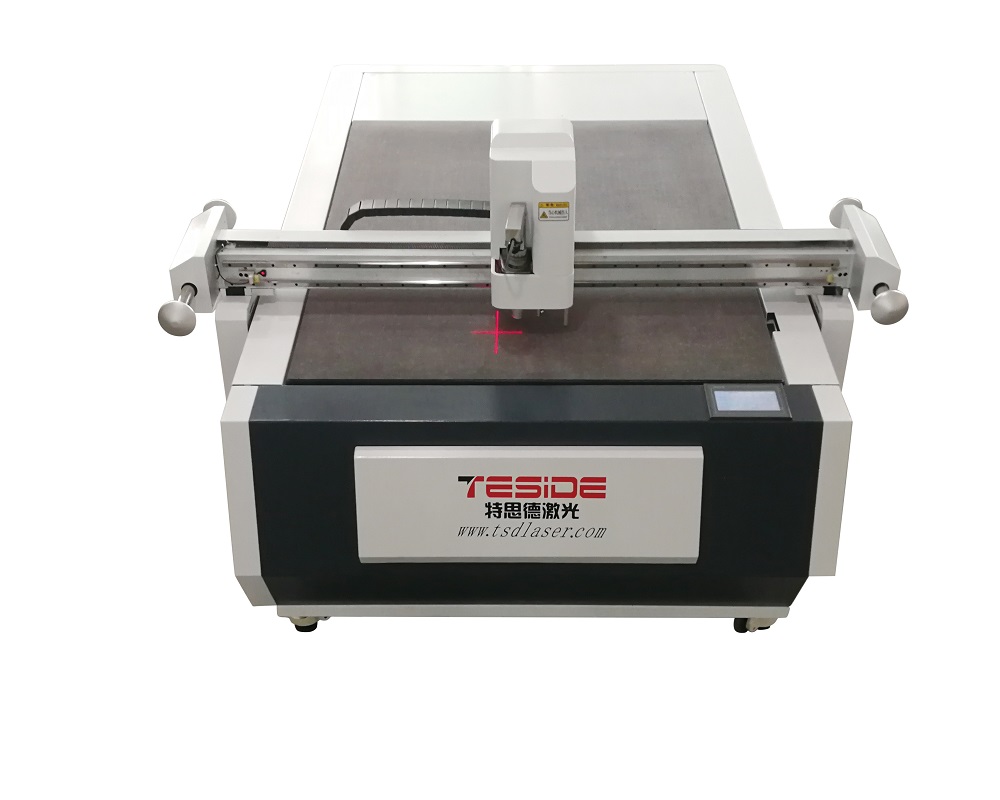

Flatbed Digital Die Box Sample Maker Cutting Machine TSD-HC2516
Machine Technical Parameters:
Machine Model No. | TSD-HC2516 |
Processing Scale | 2500mm x 1600mm |
Cutting Table | All aluminum alloy honeycomb table |
Fixing Material Method | VACUUM adsorption |
Driving System | Panasonic Servo Motor |
Transmission Mode | Linear guide rail + rack drive |
Configuration | Standard: Vibrating knife, pressing wheel, drawing pen, laser light positioning; Optional: drag knife, CCD positioning system, V cutter |
Cutting Accuracy | <0.1mm |
Repeat Accuracy | <0.1mm |
MIN. Diameter of Circle | 3mm-6mm (according to materials) |
MAX. Speed | 2100mm/s |
MAX. Cutting Thickness | 60mm |
Transmission Port | Ethernet port |
Data Format Standard | HP-GL format, compatible with various AUTO CAD |
Control Panel | LCD screen, light-touched key-press |
Recommend Spare Parts | Knife |
Power Supply | 3 Phases 380V/50Hz |
Machine Size | 3300*2400*1450mm |
Machine Weight | 900KG |
HS Code | 8441100000 |
Machine Feature and Functions:
1. Industrial applications: Packaging, color printing, advertising, display, automotive interiors, clothing, luggage, handbags, footwear, composite materials, etc.
2. Cutting materials: Cardboard, corrugated paper, gray board, honeycomb board, KT board, silk ring foot pad, leather, pearl cotton, carbon fiber, etc.
3. Four kinds cutting knives: oscillating knife, drag knife, creasing wheel, drawing pen.
4. It can be used for cutting thickness less than 15 mm cardboard, foam board, paper, leather, fabric, etc. And card paper thickness less than 2mm.
5. Machine comes with vacuum pump, you need prepare a set 1.5KW air compressor and right electricity for machine working.
