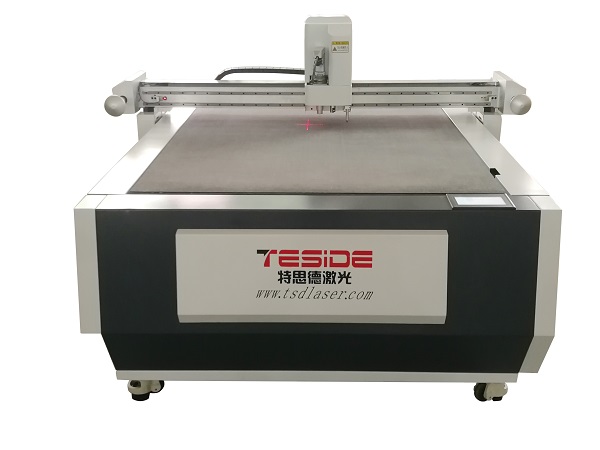

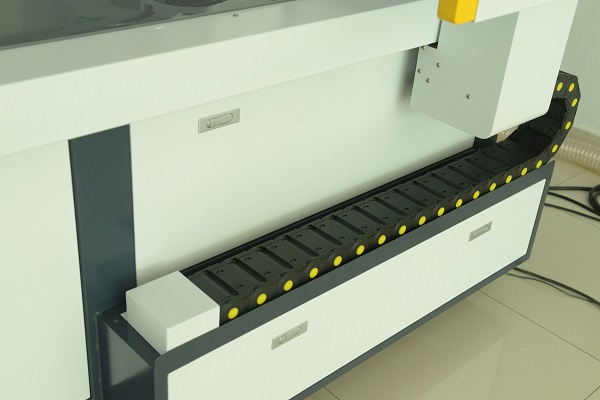

Digital Sample Plotter Cutting Machine V Cut Grey Board

Digital Sample Plotter Cutting Machine V Cut Grey Board

Machine Technical Parameters:

Machine Model No.	TSD-HC1310/TSD-HC1713
Processing Scale	1300mm x 1000mm, 1700 x 1300mm
Cutting Table	All aluminum alloy honeycomb table
Fixing Material Method	VACUUM adsorption
Driving System	Panasonic Servo Motor
Transmission Mode	Linear guide rail + rack drive
Configuration	Standard: Vibrating knife, pressing wheel, drawing pen, laser light positioning; Optional: drag knife, CCD positioning system, V cutter
Cutting Accuracy	<0.1mm
Repeat Accuracy	<0.1mm
MIN. Diameter of Circle	3mm-6mm (according to materials)
MAX. Speed	2100mm/s
MAX. Cutting Thickness	60mm
Transmission Port	Ethernet port
Data Format Standard	HP-GL format, compatible with various AUTO CAD
Control Panel	LCD screen, light-touched key-press
Recommend Spare Parts	Knife
Power Supply	3 Phases 380V/50Hz
Machine Size	260021001450mm
Machine Weight	720KG
HS Code	8441100000

Main Features and Functions:

1. It is equipped with 2 replaceable tool heads and an integral head frame for replacing tools conveniently.

2. 7-axis high-speed motion controllers, modular installation, and convenient maintenance.

3. The parameter setting is simple. Different materials could be easily cut by TSD digital cutting machine by setting parameters and replacing tools.

4. Expanding easily the functionality of the upgrade device and the new module.

5. The Taiwan linear guide with the drive rail ensure the machine running smoothly and the high precision.

HC-3 (1)
