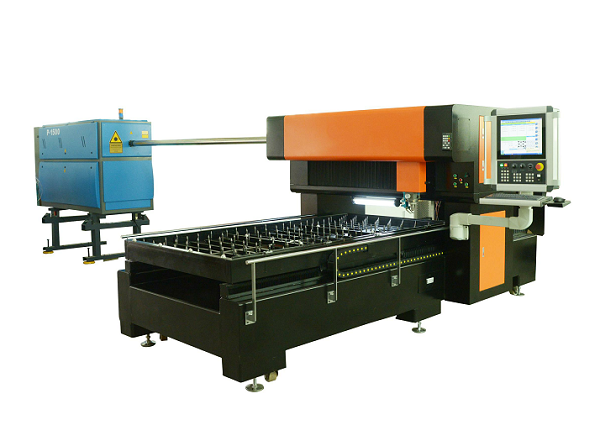

Machine model No.
| TSD-LC600-1618 |
Laser Type | TSD Laser CO2 direct-current stimulated glass laser |
Cutting area | width 1600mm x length1800mm |
Machine weight | 2200kgs |
Driving motor | Panasonic servo motor |
Cutting depth | 15mm-18mm-22mm plywood |
Cutting precision | ±0.05mm |
Mould knife thickness | 2pt, 3pt and 4pt |
Cutting speed 400W | 8-9mm/s for 18-20mm plywood cutting |
Protective gas | Dry and oil-free air |
Power supply | single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | Auto CAD |
Graphic format support | Auto CAD files. |
EMS memory | attached 32MB memory, can work under off-line condition |
Laser tube guarantee | guarantee 10 months,6000 hours life span for laser tube |
Assistant equipment | air dryer, industrial chiller, exhaust fan, computer system |
Recommend spare parts | laser tube, lens, mirror |
H.S Code | 8456110090 |
Machine Features:
1.Laser power Devices: China brand Hongyuan.
2.Fixed laser path, ensure the stability of the optical path.
3.Laser cutting head coming with auto touching following system, adapt to the jagged materials.
4.High temperature heat treatment working table and large gantry milling processing.
5.Stable machine design, high strength of machine bed, long-year working.
6.Low consumption of voltage about 5-7 kilowatt per hour.
