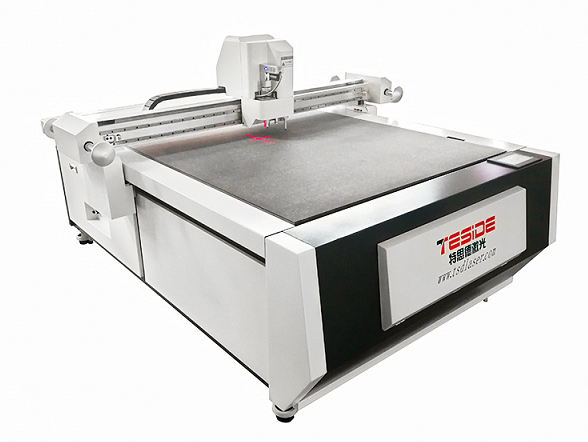

Desktop Digital Die Cutting Machine
Machine Technical Parameters:
Machine Model No. | TSD-HC1713 |
Processing Scale | 1700mm x 1300mm |
Cutting Table | All aluminum alloy honeycomb table |
Fixing Material Method | VACUUM adsorption |
Driving System | Panasonic Servo Motor |
Transmission Mode | Linear guide rail + rack drive |
Configuration | Standard: Vibrating knife, pressing wheel, drawing pen, laser light positioning; Optional: drag knife, CCD positioning system, V cutter |
Cutting Accuracy | <0.1mm |
Repeat Accuracy | <0.1mm |
MIN. Diameter of Circle | 3mm-6mm (according to materials) |
MAX. Speed | 2100mm/s |
MAX. Cutting Thickness | 60mm |
Transmission Port | Ethernet port |
Data Format Standard | HP-GL format, compatible with various AUTO CAD |
Control Panel | LCD screen, light-touched key-press |
Recommend Spare Parts | Knife |
Power Supply | 3 Phases 380V/50Hz |
Machine Size | 2600*2100*1450mm |
Machine Weight | 720KG |
HS Code | 8441100000 |
Machine feature and functions:
1. Industrial applications: Packaging, color printing, advertising, display, automotive interiors, clothing, luggage, handbags, footwear, composite materials, etc.

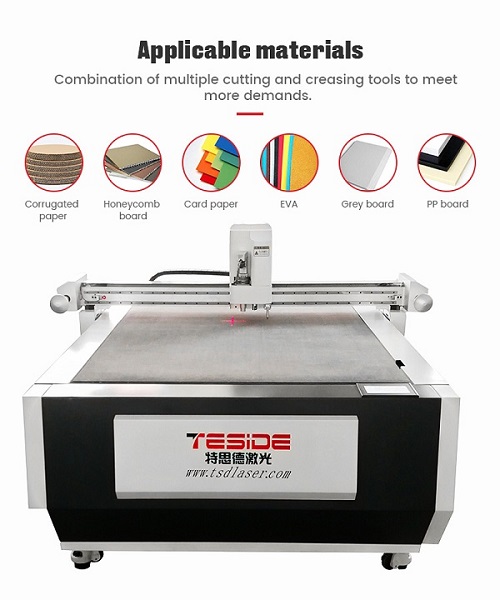

2. Cutting materials: Cardboard, corrugated paper, gray board, honeycomb board, KT board, silk ring foot pad, leather, pearl cotton, carbon fiber, etc.

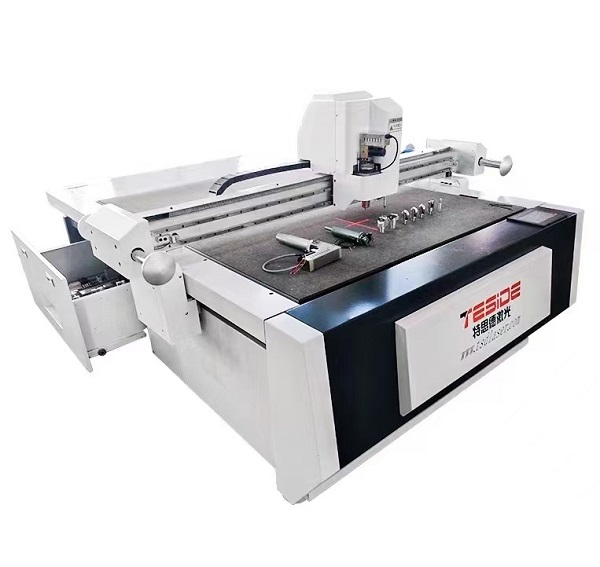

3. Four kinds cutting knives: oscillating knife, drag knife, creasing wheel, drawing pen.
4. It can be used for cutting thickness less than 15 mm cardboard, foam board, paper, leather, fabric, etc. And card paper thickness less than 2mm.
5. Machine comes with vacuum pump, you need to prepare a set 1.5KW air compressor and right electricity for machine working.
6. Low consumption of voltage about 7 kilowatt per hour.
Matters needing attention:
1. During cutting or drawing, please do not touch the working table, bracket or move parts of the equipment to avoid personal injury.
2. It is necessary to ensure the grounding installation to avoid electric shock injury to operators in case of electric leakage.
3. The proofing machine should not be used in places with water, rain or snow to avoid electric shock or fire caused by electric leakage.
4. If the proofing machine smokes, overheats, gives off peculiar smell or has abnormal function, please stop using it, cut off the power supply and contact our company.
5. Please do not use or store the proofing machine in exposed and wet places, which will weaken the performance and service life of the proofing machine.
6. Please do not place heavy objects on the machine platform to avoid the deformation of the machine platform and affect the cutting quality.
FAQ
We have served more than 5000 users and our die-making equipment installed in over 70 countries including European & American countries.
Die laser cutting machine for 6-30mm plywood cutting, which is a matched die-making machine for die board making used in packing, printing, and advertising industries.
One set die laser cutting machine, one set auto bending machine and some assistant manual tools will be recommended.
The regular auto bender supports 1.42x 60mm max cutting rule processing, and the customized one supports 1 x 150mm cutting rule processing.
Yes, sure thing. Just feel free to send us the die-cutting drawing in DXF format, and process videos of running samples by our machine will be sent to you. Also, the samples could be sent to you by DHL based on your account if needed.
A full set die-making machine with related device systems will be offered by TSD. Just need customers to prepare a set 7.5kw/10P air compressor and the right electricity and space. Electricity in China is 220 50Hz single phase & 380V 60Hz 3 phase. A set voltage transformer which with stabilization functions will be prepared by customers is necessary. The working space needed for a set 400watt laser and a set auto bender is around 23-25 square meters.
