Cardboard Box Laser Pressing Cutting Machine
Technical Specifications:
Machine model No. | TSD-LC400-1618 |
Laser Type | TSD Laser CO2 direct-current stimulated glass laser |
Cutting area | width 1600mm x length1800mm |
Machine weight | 2000kgs |
Driving motor | Panasonic servo motor |
Cutting depth | 15mm-18mm-20mm plywood |
Cutting precision | ±0.05mm |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould knife thickness | 0.45mm, 0.71mm,1.07mm…etc. controllable |
Cutting speed 400W | 25-30meters/hour 18-20mm plywood |
Protective gas | Dry and oil-free air |
Power supply | single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | Auto CAD |
Graphic format support | Auto CAD files. |
EMS memory | attached 32MB memory, can work under off-line condition |
Laser tube guarantee | guarantee 8 months,6000 hours life span for laser tube |
Assistant equipment | air dryer, industrial chiller, exhaust fan, computer system |
Recommend spare parts | laser tube, lens, mirror |
H.S Code | 8456110090 |
Machine Feature:
1. Fixed laser path, ensure stable optical path.
2. Laser head can be automatically adapted to jagged material, ensuring uniform cutting seam.
3. Large gantry milling and high-temperature heat treatment working table, can be used for long years without deformation.
4. Off-line control system, it's easy to set up cutting parameters on the LCD screen.
5. Sealed laser path and clean environment offer a long-time lifespan for the lens.
6. High effective and optimized exhaust system to reduce smoke during working, and keep a healthy environment.
Introducing our state-of-the-art Die Board Laser Cutting Machine, designed to meet the specific needs of professionals in the industry. With its exceptional capabilities, this machine is your ultimate solution for precision cutting and creating knife templates.

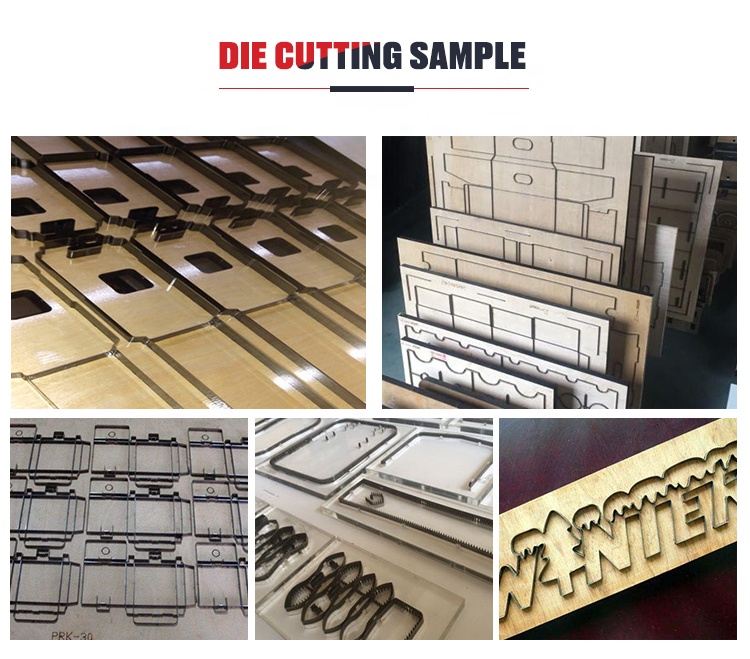

Our Die Board Laser Cutting Machine is specifically engineered to handle the cutting of 9-20mm plywood, making it ideal for crafting intricate and accurate knife templates. With its advanced technology and precision, this machine guarantees flawless results every time.
Equipped with cutting-edge features, our Die Board Laser Cutting Machine ensures optimal performance and efficiency. Its high-powered laser beam delivers swift and precise cuts, allowing you to achieve intricate designs and complex patterns effortlessly.
Designed for professionals, this machine offers unparalleled accuracy and reliability. Its user-friendly interface and intuitive controls make it easy to operate, ensuring a seamless experience for even the most demanding projects.
Safety is our utmost priority, and our Die Board Laser Cutting Machine is equipped with advanced safety features to protect both the user and the machine. With its robust construction and built-in safety mechanisms, you can have peace of mind while operating this machine.
Invest in our Die Board Laser Cutting Machine and elevate your production capabilities to new heights. Experience the efficiency, precision, and versatility that this machine offers, and witness the transformation it brings to your knife template creation process.
Choose our Die Board Laser Cutting Machine for unparalleled performance, exceptional quality, and professional-grade results. Elevate your craft and stay ahead of the competition with this cutting-edge solution.
The matched auto blade bending machine for steel rule die making.
Auto blade bending machine is mainly used for steel rule processing, with functions of auto bending, bridging, lipping, cutting, perforating, broaching, nicking, and hole punching.
The thickness of the steel ruler usually are 0.53mm, 0.71mm, 1.05mm and 1.42mm, and the height can be 8-60mm. It can not only meet the high-precision die-cutting board making requirements of customers, but also greatly improve work efficiency. It is matched with die board laser cutting machine for steel ruler die making.
Just contact us to select the right auto blade bending machine to make your work more efficient.
