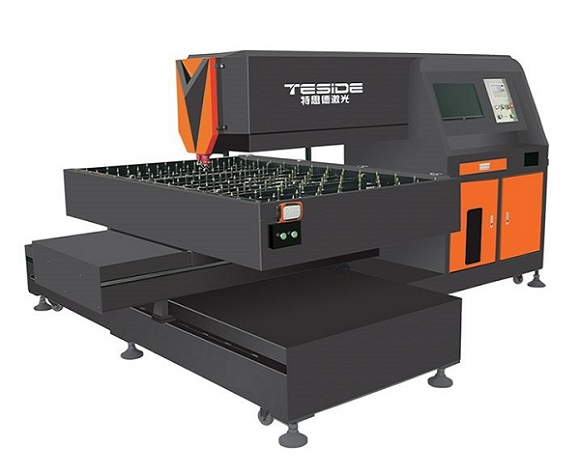

CO2 Laser Type Die Laser Cutting Machine For Packaging Box
Technical Specifications:
Machine model No. | TSD-LC800-1618 |
Laser Type | TSD Laser CO2 direct-current stimulated glass laser |
Cutting area | width 1600mm x length 1800mm |
Machine weight | 2000kgs |
Driving motor | Servo motor |
Cutting depth | 15mm-18mm-20mm plywood |
Cutting precision | ±0.05mm |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould knife thickness | 0.45mm, 0.71mm,1.07mm…etc. controllable |
Cutting speed 400W | 40-45meters/hour 18-20mm plywood |
Protective gas | Dry and oil-free air |
Power supply | single-phase electricity 220V±5% 50Hz 10A |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | Auto CAD |
Graphic format support | Auto CAD files. |
EMS memory | attached 32MB memory, can work under off-line condition |
Laser tube guarantee | guarantee 8 months,6000 hours life span for laser tube |
Assistant equipment | air dryer, industrial chiller, exhaust fan, computer system |
Recommend spare parts | laser tube, lens, mirror |
H.S Code | 8456110090 |
Machine and Assistant Features:
Motor System: Panasonic servo motor to guarantee high precision cutting.
Drive System: HIWIN linear guide rail + ball screw to guarantee high precision cutting and table moving
External light path system: USA II-VI optical lens, reflector mirror to guarantee strong laser focus.
Cooling system: China Guangzhou S & A CW-6100 Industrial chiller water cooling.
Exhausting system: one set 1100watt exhaust fan to carry out smoking.
Laser control system: Fully English language TSD laser software, PC control.
Laser power Devices: China brand Hongyuan.
Fixed laser path, ensure the stability of the optical path.
Laser cutting head coming with auto touching following system, adapt to the jagged materials.
High temperature heat treatment working table and large gantry milling processing.
Stable machine design, high strength of machine bed, long-year working.
Low consumption of voltage about 5-7 kilowatt per hour.
Introducing our high-quality die board laser cutting machine, designed to meet the demands of various industries. With a range of power options including 400W, 600W, 800W, 1000W, 1500W, 1900W, and 2000W, this machine offers exceptional precision and efficiency.
Our die board laser cutting machine is capable of cutting a wide range of materials, including wood boards, plywood, laminated boards, PVC, organic glass, and stainless steel. This versatility makes it ideal for applications in packaging, leather goods, printing, advertising, and paper industries.
With its professional and precise laser cutting technology, this machine is specifically designed for the production of precision laser die boards. The laser power options allow for customization based on the specific requirements of your projects.
Investing in our die board laser cutting machine means investing in a reliable and efficient tool that will enhance your production capabilities. Its user-friendly interface and advanced features ensure smooth operation and consistent high-quality results.
Choose our die board laser cutting machine for its exceptional performance, reliability, and versatility. Experience the benefits of precise laser cutting technology and elevate your business to new heights.
