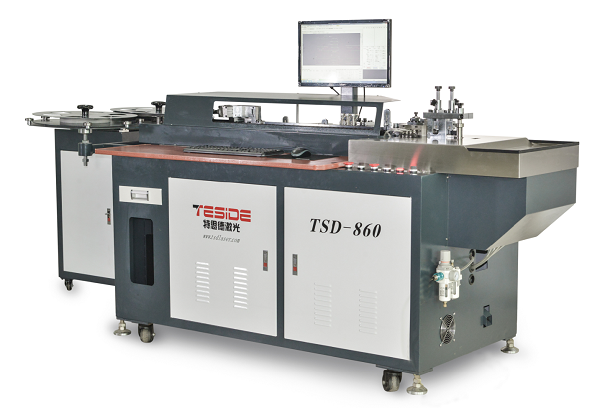

CNC Fast Automatic Blade Bending machine

CNC Fast Automatic Blade Bending machine

Technical Parameter:

Bending rule thickness(mm)	0.71mm/2pt, 1.05m/3pt
Bending rule height(mm)	23mm-30mm
Bridge width	Over 5.5mm any sizes available.
Bridge height	15mm, 18mm
Max. bending angle	100°
Min. ARC radius 90 degree	0.4MM
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Cutting rule: Bending, cutting, lipping, bridge functions Creasing rule: cutting and bridge functions
Cutting methods	Swing cutting or Automatic flat cutting
Optimal pattern format	Auto CAD, Core Draw files are supported
Air supply	0.6mpa
Power supply	380V 50/60Hz (Standard) 3phase
Machine total power	2KW
Weight	550KGS
Overall dimension	2700×1150×1350mm(L×W×H)
H.S. Code	8462219000

Functions and usage:
1.Basic function such as bending, bridging, front lipping, back lipping, cutting and flat cutting.

2. Serve motor system+ball screw guide rail design, avoiding skidding and error in length.

3. Unique tool design make it is durable and easy to bend with high precision.

4. In order to gurantee precisio and long-life span, transmission and control parts are imported.
