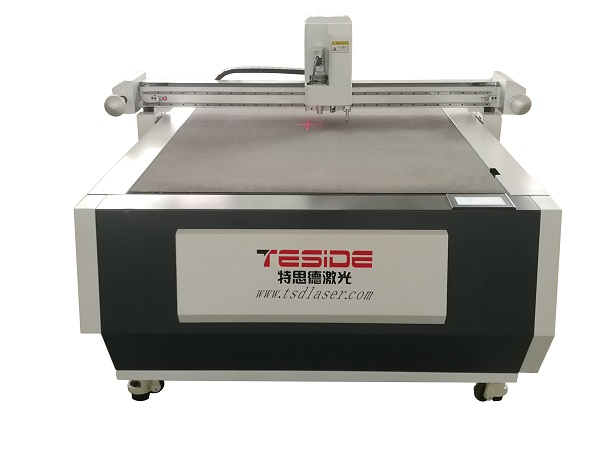

Automatic Cnc Digital Oscillating Knife Cutting Machine
Machine Technical Parameters:
Machine Model No. | TSD-HC1310/TSD-HC1713 |
Processing Scale | 1300mm x 1000mm, 1700 x 1300mm |
Cutting Table | All aluminum alloy honeycomb table |
Fixing Material Method | VACUUM adsorption |
Driving System | Panasonic Servo Motor |
Transmission Mode | Linear guide rail + rack drive |
Configuration | Standard: Vibrating knife, pressing wheel, drawing pen, laser light positioning; Optional: drag knife, CCD positioning system, V cutter |
Cutting Accuracy | <0.1mm |
Repeat Accuracy | <0.1mm |
MIN. Diameter of Circle | 3mm-6mm (according to materials) |
MAX. Speed | 2100mm/s |
MAX. Cutting Thickness | 60mm |
Transmission Port | Ethernet port |
Data Format Standard | HP-GL format, compatible with various AUTO CAD |
Control Panel | LCD screen, light-touched key-press |
Recommend Spare Parts | Knife |
Power Supply | 3 Phases 380V/50Hz |
Machine Size | 2600*2100*1450mm |
Machine Weight | 720KG |
HS Code | 8441100000 |
Main Features and Functions:
1. Aviation honeycomb aluminum alloy adsorption platform, with table compensation, good sample running effect.
2. Double-tool holders design, good effect, and strong expansion ability (most of the peers are single-tool holders)
3. Full rack drive system to ensure high precision and high speed.
4. Independent research and development operating system, simple operation, powerful function, lifetime upgrade for machine software.
5. It can be equipped with a high-speed digital proofing machine, with good printing effect and fast speed.
It can follow the mass effect of the printing machine and build a one-stop solution for small batches of packaging and printing, replenishment, and proofing.
6. 12 years of equipment manufacturing experience in the packaging industry, rich service team experience, and timely response for customers.
Automatic Cnc Digital Oscillating Knife Cutting Machine
Machine Technical Parameters:
Machine Model No. | TSD-HC1310/TSD-HC1713 |
Processing Scale | 1300mm x 1000mm, 1700 x 1300mm |
Cutting Table | All aluminum alloy honeycomb table |
Fixing Material Method | VACUUM adsorption |
Driving System | Panasonic Servo Motor |
Transmission Mode | Linear guide rail + rack drive |
Configuration | Standard: Vibrating knife, pressing wheel, drawing pen, laser light positioning; Optional: drag knife, CCD positioning system, V cutter |
Cutting Accuracy | <0.1mm |
Repeat Accuracy | <0.1mm |
MIN. Diameter of Circle | 3mm-6mm (according to materials) |
MAX. Speed | 2100mm/s |
MAX. Cutting Thickness | 60mm |
Transmission Port | Ethernet port |
Data Format Standard | HP-GL format, compatible with various AUTO CAD |
Control Panel | LCD screen, light-touched key-press |
Recommend Spare Parts | Knife |
Power Supply | 3 Phases 380V/50Hz |
Machine Size | 2600*2100*1450mm |
Machine Weight | 720KG |
HS Code | 8441100000 |
Main Features and Functions:
1. Aviation honeycomb aluminum alloy adsorption platform, with table compensation, good sample running effect.
2. Double-tool holders design, good effect, and strong expansion ability (most of the peers are single-tool holders)
3. Full rack drive system to ensure high precision and high speed.
4. Independent research and development operating system, simple operation, powerful function, lifetime upgrade for machine software.
5. It can be equipped with a high-speed digital proofing machine, with good printing effect and fast speed.
It can follow the mass effect of the printing machine and build a one-stop solution for small batches of packaging and printing, replenishment, and proofing.
6. 12 years of equipment manufacturing experience in the packaging industry, rich service team experience, and timely response for customers.
