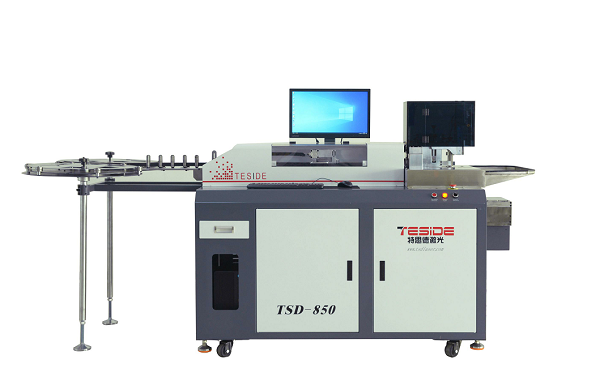

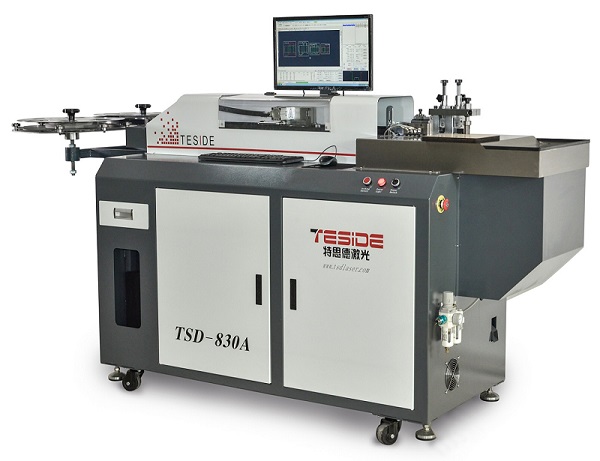

Auto Steel Rule Die Blade Bending Machine
Technical Parameter:
Max. bending angle | 100° |
Min. ARC radius of 90 degree | 0.4MM |
Front Min. bending size | 1.5MM |
Back Min. cutting size | 1.0MM |
Feeding precision | ±0.03mm |
Bending flatness | ±0.2mm |
Cutting methods | cutting |
Optimal pattern format | Auto CAD, Core Draw files are supported |
Air supply | 0.6mpa |
Power supply | 220V 50Hz (Standard) 1Phrase |
Machine total power | 1.3KW |
Weight. | 500KGS |
Overall dimension | 2700*1050*1540mm(L*W*H) |
H.S. Code | 8462 2190.00 |
Functions and Usage:
1. Suitable for Printing Package Box, label sticker die-cut etc.
2. Self-developed latest bending control system, fast speed, easy to operate and upgrade available.
3. Fully Chinese, English, Spanish, Russia and Portuguese language software, easy to learn how to operate.rted Servo motor drive system + Ball-screw guide rail design, eradicate skidding and dislocated.
4. Unique imported mould tool design, easy to bend pattern, high precision of size, durable
5. In order to guarantee precision and long-life span, transmission and control parts are imported
6. It can be installed soon after bending patterns form the machine, no need extra more hard work.
FAQ
We have served more than 5000 users and our die-making equipment installed in over 70 countries including European & American countries.
Die laser cutting machine for 6-30mm plywood cutting, which is a matched die-making machine for die board making used in packing, printing, and advertising industries.
One set die laser cutting machine, one set auto bending machine and some assistant manual tools will be recommended.
The regular auto bender supports 1.42x 60mm max cutting rule processing, and the customized one supports 1 x 150mm cutting rule processing.
Yes, sure thing. Just feel free to send us the die-cutting drawing in DXF format, and process videos of running samples by our machine will be sent to you. Also, the samples could be sent to you by DHL based on your account if needed.
