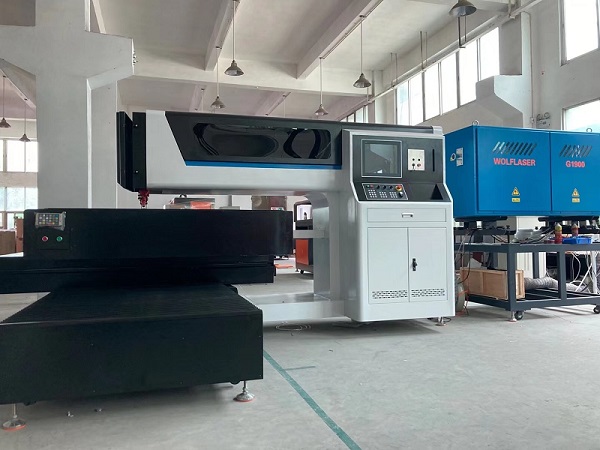

1900Watt Cross Table CO2 Laser Type Die Laser Cutting Machine For Packaging Box
Technical Specifications:
Machine Model No. | TSD-LC1900-1325 |
Processing scale | 1300mm*2500mm |
Machine weight | 2500KGS |
Laser type | High power axial flow CO2 Sealed laser generator WOLF |
Laser power | 1900W |
Driving system | 3 Axial Servo Motor |
Table power supply | Single phase 220V 50Hz 10A |
Laser power supply | 3 Phases 380V 50Hz 12kVA |
Controlling system | PMAC motion card |
Laser cutting system | PA |
Optical system | Semi-optical |
Moving structure | Gantry |
Cutting precision | ±0.05mm |
USB port connection | Yes |
Operating temperature | 0-45°C |
Mould cutting kerf | 0.45mm, 0.71mm,1.07mm…etc. controllable |
Cutting speed | ≥1m/min, 70meters/h for 18mm plywood cutting |
Protective gas | Dry and oil-free air |
Numerical control panel | LCD screen, light-touched key-press |
Software supported | CorelDraw, Auto CAD, Photo Shop |
Graphic format support | DXF, BMP, JPG, GIF, PGN, TIF, PLT |
EMS memory | attached 64MB memory, can work under off-line condition |
In gas | He, N2, CO2 (99.999%) |
Transmission system | Ball screw & linear guide |
Overall dimensions | 3600*2300*1800mm (L*W*H) |
H.S Code | 8456110090 |
Machine Features:
1. Adopt Gantry style and mixed laser path structure, machine table bed hard and stable in working, small floor space required for machine, laser optical path short, adopt imported reflect mirror and lens from America to make laser path thinner and the cut stronger.
2. Intelligent Electronic Laser cutting head coming with automatic touching system, automatically adjustment to adapt the jagged materials and keep cutting precision.
3. Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4. Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5. Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6. Software is easy to operate, simple and easy to understand.
7. Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam and during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8. Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
When using a high power die laser cutting machine, you need to pay attention to the following aspects:
Safety protection: When using the laser cutting machine, you need to pay attention to safety protection measures. Make sure that there are no people around the cutting area, and set up protective fences or warning signs. At the same time, operators should wear appropriate personal protective equipment, such as protective gloves.
Stable equipment: Large laser cutting machines usually need to be fixed on a solid base to ensure the stability of the equipment. Before use, check the fixing of the equipment to ensure that the equipment is not loose or unstable.
Clean cutting area: The cutting area should be kept clean and free from debris or other obstacles. Regularly clean the cutting area to remove the waste and dust generated by cutting, so as to maintain the cutting quality and the normal operation of the equipment.
Consumables maintenance: Regularly check and maintain the consumables of the laser cutting machine, such as laser dies, cutting bed boards, etc. Clean the lens, adjust the optical path, and replace worn or damaged parts to maintain the normal operation and cutting quality of the equipment.
Cutting parameter setting: According to different materials and cutting requirements, set appropriate cutting parameters, such as laser power, cutting speed and depth of focus, etc. Reasonable cutting parameters can improve cutting efficiency and quality, while prolonging the service life of equipment and consumables.
Regular maintenance: regular maintenance of the equipment, such as cleaning the surface of the equipment, lubricating transmission parts, checking electrical connections, etc. According to the frequency of use of the equipment and the working environment, a reasonable maintenance plan is formulated to ensure the stability and life of the equipment.
Training and operating specifications: Operators should receive relevant training to understand the operatingspecifications and safe operating procedures of the equipment. Operate in strict accordance with the operation manual and safety regulations to avoid operating errors and safety accidents.
The above are some matters that need to be paid attention to when using a large laser cutting machine. Users should understand the operation and safety requirements of the equipment in detail before use, and abide by relevant regulations to ensure safety and normal operation of the equipment.
