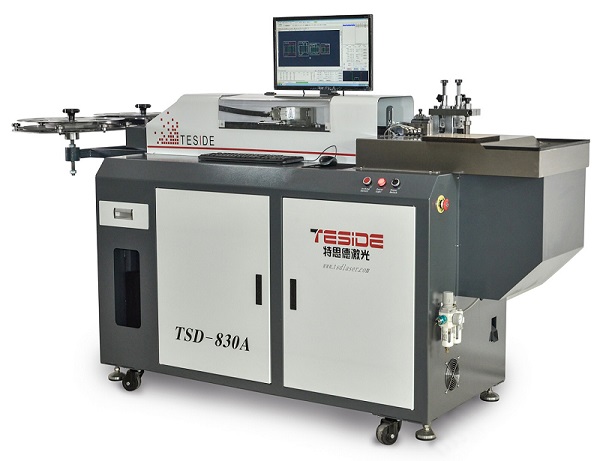

Die Auto Steel Blade Bender Machine For 2Pt 3Pt Blade
Technical Parameters:
Bending Blade thickness(mm) | 1.5pt, 2pt, 3pt |
Bending Blade height(mm) | 8-30mm |
Bridge width | Over 5.5mm any sizes available. |
Bridge tool size | 5.5x18mm, 5.5x15mm |
Max. bending angle | 100° |
Min. ARC radius of 90 degree | 0.4MM |
Front Min. bending size | 1.5MM |
Back Min. cutting size | 1.0MM |
Feeding precision | ±0.03mm |
Bending flatness | ±0.2mm |
Functions | fully automatic bending, cutting, bridge, lipping |
| Optional functions | perforating |
Cutting methods | cutting or auto flat cutting |
Optimal pattern format | Auto CAD, Core Draw files are supported |
Air supply | 0.6mpa |
Power supply | 380V 50Hz (Standard) 3 Phases |
Machine total power | 1.3KW |
Weight | 500KGS |
Overall dimension | 2800*1120*1540mm(L*W*H) |
H.S. Code | 8462219000 |
Functions and Usage:
Possess of functions such as bending, bridge, flat cutting and lipping functions.
Fuji Servo motor system + Ball-screw guide rail in design, eradicate skidding and dislocated.
Unique imported mould tool design, easy to bend pattern, high precision of size, durable
In order to guarantee precision and long-life span, transmission and control parts areimported
Self-developed latest bending control system, easy to operate and upgrade available.
Fully English & Chinese interface, easy to learn how to operate, make bending workeasy.
It can be installed soon after bending patterns form the machine, no need extra morehard work. It’s widely used in sticker die…etc..
Exactly to realize fully automatic bending, help to save plate making time.
When using an automatic blade bending machine, you need to pay attention to the following:
1. Safe operation: ensure that operators are familiar with the operating procedures and safe operating procedures of the automatic machete machine. Wear safety protective equipment, such as gloves, goggles, etc., to prevent accidental injuries.
2. Equipment inspection: Before using the automatic machete machine, check the operating status of the equipment and the working conditions of each component to ensure the normal operation of the equipment.
3. Material preparation: Prepare the materials that need to be bent, and ensure that the size and quality of the materials meet the requirements.
4. Adjustment parameters: According to the type and requirements of the material, adjust the parameters of the automatic bending machine, such as bending angle, bending speed, etc., to ensure that the bending effect meets expectations.
5. Fixing the material: Before the bending operation, the material should be fixed correctly on the table of the automatic bending machine to ensure that the material will not move or deform during the bending process.
6. Monitoring operation: During the operation of the automatic machete machine, it is necessary to monitor the operation of the equipment and the change of materials at all times to ensure the smooth operation.
7. Regular maintenance: Regular maintenance and maintenance of automatic machete machines, including cleaning equipment, lubricating parts, replacing worn parts, etc., to keep the equipment in good condition.
8. Pay attention to accident handling: In case of equipment failure or accident, stop the machine immediately and handle it according to the emergency treatment procedures to ensure the safety of personnel and the integrity of equipment.
In short, when using an automatic machete machine, it is necessary to strictly follow the operating procedures to ensure safety and quality. At the same time, regularly maintain the equipment to improve the service life and production efficiency of the equipment.
